SF-1206F050-2 Fast Acting Surface Mount Fuses

SF-1206F050-2 Description

*RoHS * *CHOAML&POLGIAENNTFREE SinglFuse™ SF-1206F Series .

SF-1206F050-2 Features

* Fast acting thin film chip fuse for overcurrent protection
* 3216 (EIA 1206) miniature footprint
* Surface mount packaging for automated assembly
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* SF-1206F Series - Fast Acting Surface Mount Fuses Clearing

SF-1206F050-2 Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SinglFuse™ SF-1206F Series Applications
* Portable memory
* Cell phones
* LCD monitors
* Rec

📥 Download Datasheet

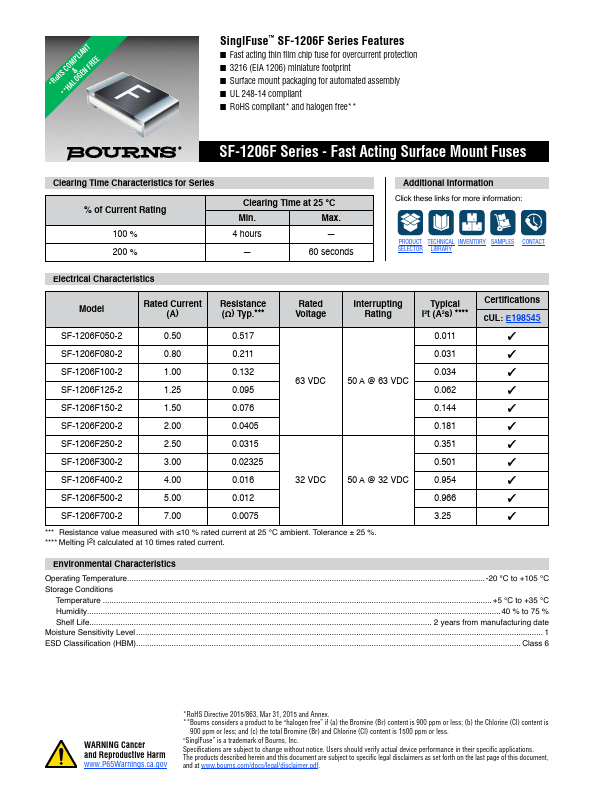

Preview of SF-1206F050-2 PDF

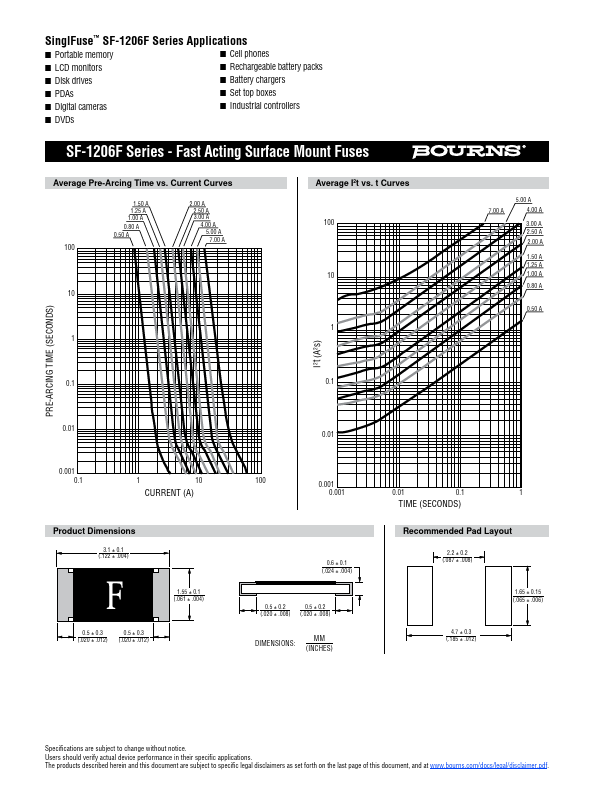

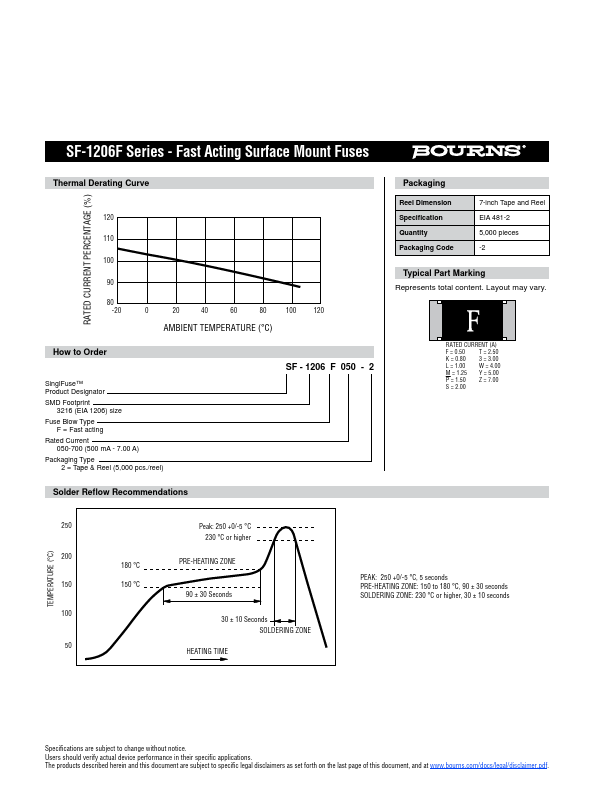

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SF-1206F050-2
Manufacturer
BOURNS
File Size
232.65 KB
Datasheet
SF-1206F050-2-BOURNS.pdf
Description
Fast Acting Surface Mount Fuses
