2045-25, 2045-07 - Medium Duty 2-Electrode Gas Discharge Tube

BOURNS

The 2045-25 by BOURNS is a Medium Duty 2-Electrode Gas Discharge Tube. Below is the official datasheet preview.

📥 Download Datasheet

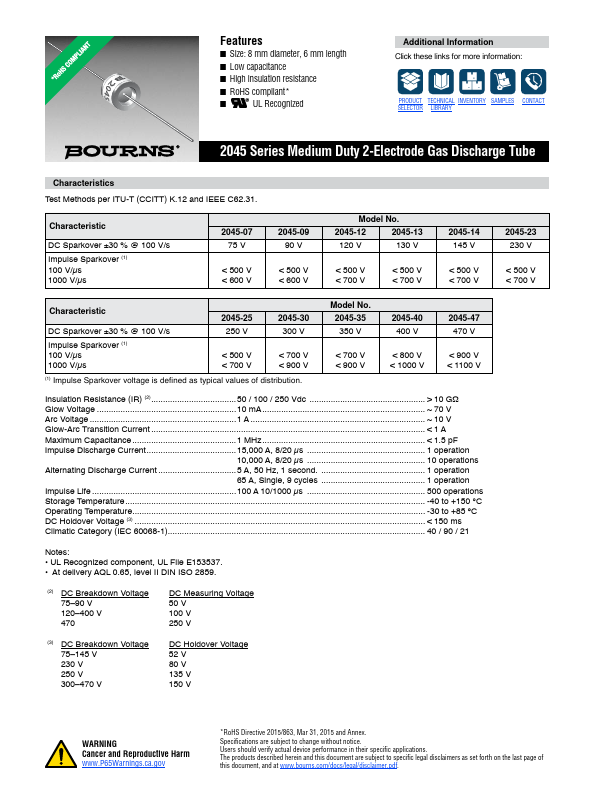

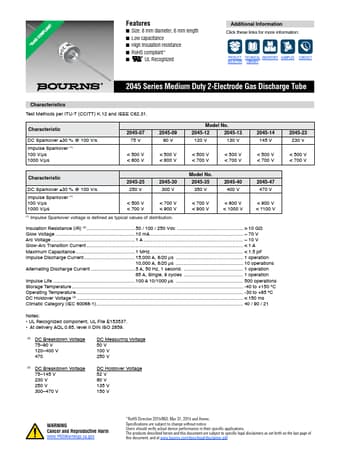

2045-25 Medium Duty 2-Electrode Gas Discharge Tube by BOURNS - Datasheet Preview — Official preview page of the 2045-25 Medium Duty 2-Electrode Gas Discharge Tube datasheet (BOURNS).

Datasheet Details

Part number	2045-25, 2045-07
Manufacturer	BOURNS
File Size	147.26 KB
Description	Medium Duty 2-Electrode Gas Discharge Tube
Datasheet	2045-07-BOURNS.pdf
Note	This datasheet PDF includes multiple part numbers: 2045-25, 2045-07. Please refer to the document for exact specifications by model.

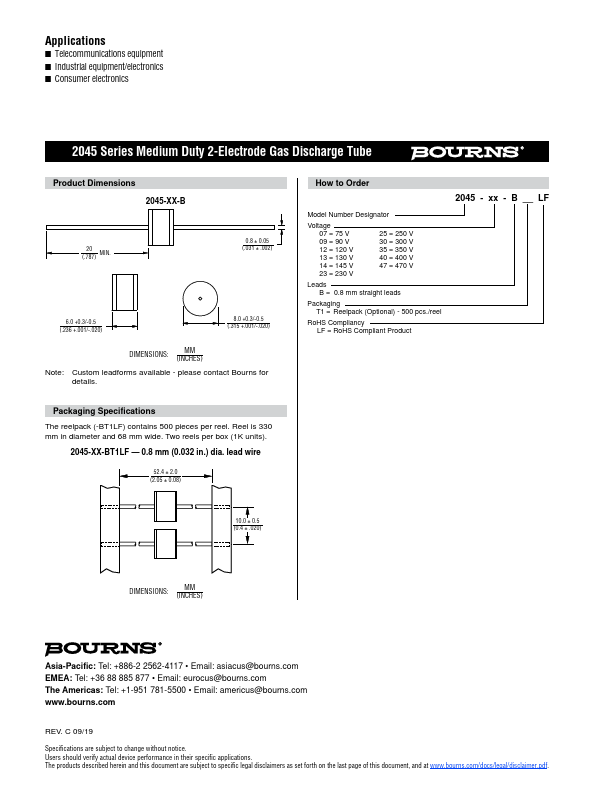

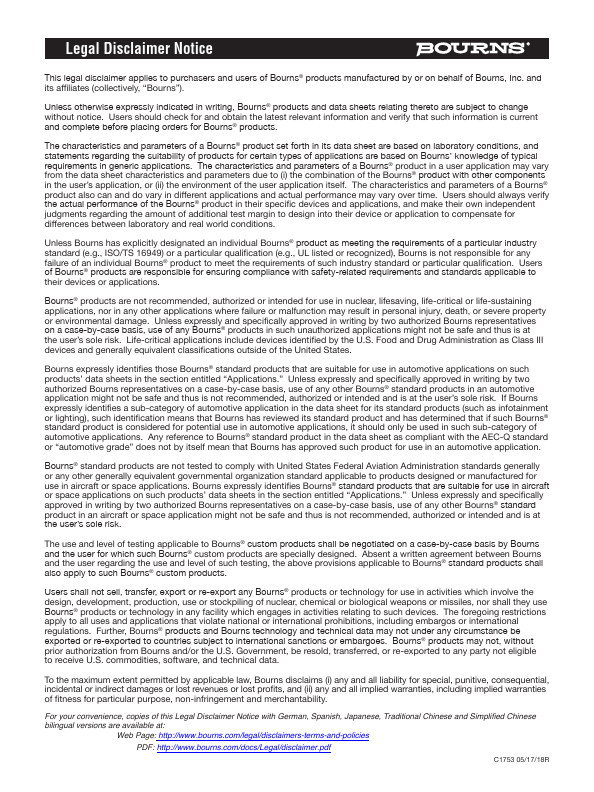

Additional preview pages of the 2045-25 datasheet.

2045-25 Product details

Features

Size: 8 mm diameter, 6 mm length.
Low capacitance.
High insulation resistance.
RoHS compliant.
UL Recognized Additional Information Click these links for more information:.
