2041-6203-00 - UnmatchedTeesNon-Isolated

Description

Miniature Unmatched Coaxial Tees provide a convenient means of separating an input signal into two components.

The units are used where Isolation between the outputs and VSWR are not primary considerations.

Temperature range is -54°C to +125°C.

Features

  • q q q 2041 Series V2.00 Small Size Broad Band Economical Power Divider.

📥 Download Datasheet

Datasheet Details

Part number 2041-6203-00
Manufacturer TycoElectronics
File Size 100.28 KB
Description UnmatchedTeesNon-Isolated
Datasheet download datasheet 2041-6203-00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
204-040-755-005 Technical Bulletin Lubricant
204-10SYGD-S530-E3 3.0mm Round Type LED Lamps Everlight
204-10USOC 3.0mm Round Type LED Lamps Everlight Electronics
2045-07 Medium Duty 2-Electrode Gas Discharge Tube BOURNS
2045-09 Medium Duty 2-Electrode Gas Discharge Tube BOURNS

Other Datasheets by TycoElectronics

Part Number Description
2041-6201-00 UnmatchedTeesNon-Isolated
2041-6202-00 UnmatchedTeesNon-Isolated
2041-6204-00 UnmatchedTeesNon-Isolated
2041 UnmatchedTeesNon-Isolated

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

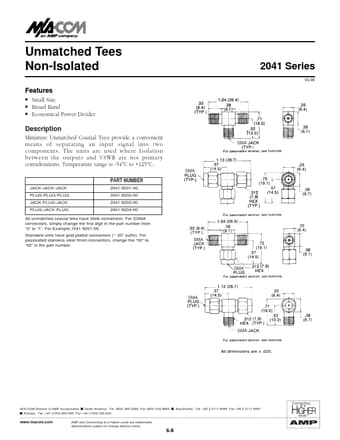

Unmatched Tees Non-Isolated Features q q q 2041 Series V2.00 Small Size Broad Band Economical Power Divider Description Miniature Unmatched Coaxial Tees provide a convenient means of separating an input signal into two components. The units are used where Isolation between the outputs and VSWR are not primary considerations. Temperature range is -54°C to +125°C. PART NUMBER JACK-JACK-JACK PLUG-PLUG-PLUG JACK-PLUG-JACK PLUG-JACK-PLUG 2041-6201-00 2041-6202-00 2041-6203-00 2041-6204-00 All unmatched coaxial tees have SMA connectors. For SSMA connectors, simply change the first digit in the part number from “2” to “1”. For Example,1041-6201-00. Standard units have gold plated connectors (“- 00” suffix).
