BL3701 - 12MHZ Low Noise Opamps

Name: BL3701
SKU: BL3701-1551678

BELLING

📥 Download Datasheet

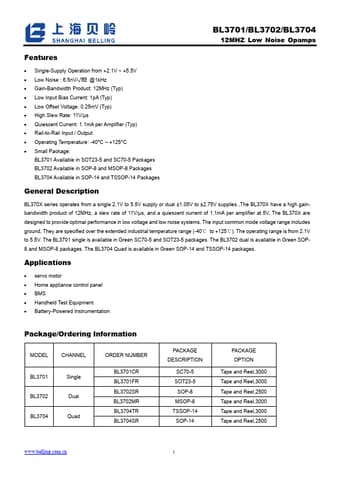

BL3701 Datasheet Preview — Preview of BL3701 PDF

Datasheet Details

Part number	BL3701
Manufacturer	BELLING
File Size	716.04 KB
Description	12MHZ Low Noise Opamps
Datasheet	BL3701-BELLING.pdf

BL3701 Product details

Description

BL370X series operates from a single 2.1V to 5.5V supply or dual ±1.05V to ±2.75V supplies ,The BL370X have a high gainbandwidth product of 12MHz, a slew rate of 11V/μs, and a quiescent current of 1.1mA per amplifier at 5V.

Features

Single-Supply Operation from +2.1V ~ +5.5V.
Low Noise : 6.5nV/√Hz @1kHz.
Gain-Bandwidth Product: 12MHz (Typ).
Low Input Bias Current: 1pA (Typ).
Low Offset Voltage: 0.25mV (Typ).
High Slew Rate: 11V/μs.
Quiescent Current: 1.1mA per Amplifier (Typ).
Rail-to-Rail Input / Output.
Operating Temperature: -40°C ~ +125°C.
Small Package: BL3701 Available in SOT23-5 and SC70-5 Packages BL3702 Available in SOP-8 and.
