BL3085E - High-speed transceiver

Name: BL3085E
SKU: BL3085E-930190

BELLING

📥 Download Datasheet

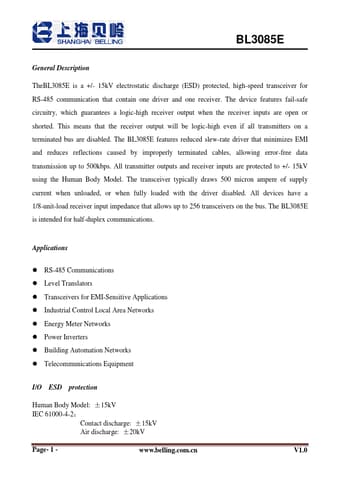

BL3085E Datasheet Preview — Preview of BL3085E PDF

Datasheet Details

Part number	BL3085E
Manufacturer	BELLING
File Size	617.79 KB
Description	High-speed transceiver
Datasheet	BL3085E-BELLING.pdf

BL3085E Product details

Description

TheBL3085E is a +/- 15kV electrostatic discharge (ESD) protected, high-speed transceiver for RS-485 communication that contain one driver and one receiver.

Features

fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be logic-high even if all transmitters on a terminated bus are disabled. The BL3085E features reduced slew-rate driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps. All transmitter outputs and receiver inputs are protected to +/- 15kV using the Human Body.
