AZ7806DTR, AZ78xx 3-TERMINAL POSITIVE LINEAR REGULATORS

BCD Semiconductor

Description

Preliminary Datasheet 3-TERMINAL POSITIVE LINEAR REGULATORS General .
The AZ78XX series are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card.

📥 Download Datasheet

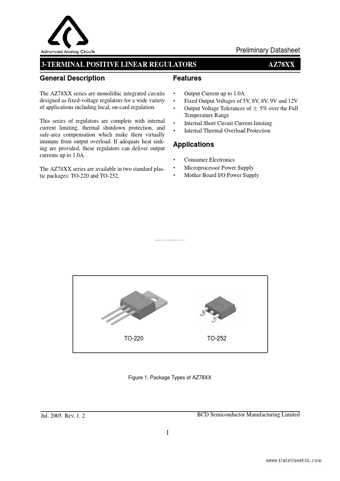

AZ7806DTR Datasheet Preview — This datasheet PDF includes multiple part numbers: AZ7806DTR, AZ78xx. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AZ7806DTR, AZ78xx
Manufacturer: BCD Semiconductor
File Size: 167.33 KB
Datasheet: AZ78xx_BCDSemiconductor.pdf
Description: 3-TERMINAL POSITIVE LINEAR REGULATORS
Note: This datasheet PDF includes multiple part numbers: AZ7806DTR, AZ78xx.
Please refer to the document for exact specifications by model.

Applications

* including local, on-card regulation. This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output curren
