AZ75232 MULTIPLE RS-232 DRIVERS/RECEIVERS

AZ75232 Description

Data Sheet MULTIPLE RS-232 DRIVERS AND RECEIVERS General .
Features AZ75232 The AZ75232 combines three drivers and five receivers, which conform to the EIA/TIA-232-F and ITU v.

AZ75232 Features

* AZ75232 The AZ75232 combines three drivers and five receivers, which conform to the EIA/TIA-232-F and ITU v.28 standards. Each receiver converts EIA/TIA-232-F inputs to 5-V TTL/CMOS levels and each driver converts TTL/CMOS input levels into EIA/TIA-232-F levels. The flow-through pinout facilitates

AZ75232 Applications

* Mother Board
* Peripheral Equipment SOIC-20 SSOP-20 TSSOP-20 Figure 1. Package Types of AZ75232 Oct. 2009 Rev. 1. 7 BCD Semiconductor Manufacturing Limited 1 MULTIPLE RS-232 DRIVERS AND RECEIVERS Pin Configuration M/GS/G Package (SOIC-20/SSOP-20/TSSOP-20) VDD 1 RA1 2 RA2 3 RA3 4 DY

📥 Download Datasheet

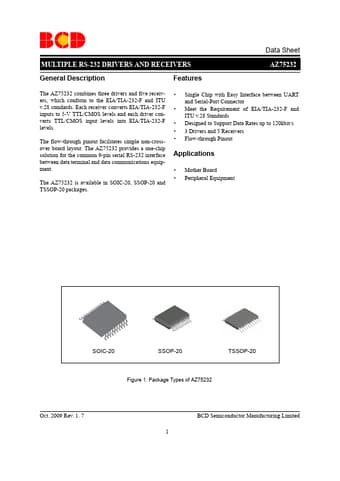

Preview of AZ75232 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AZ75232
Manufacturer
BCD Semiconductor
File Size
376.98 KB
Datasheet
AZ75232_BCDSemiconductor.pdf
Description
MULTIPLE RS-232 DRIVERS/RECEIVERS
