AZ7500C, AZ7500B Pulse-Width-Modulation Controller

AZ7500C Description

Data Sheet PULSE-WIDTH-MODULATION CONTROL CIRCUITS General .
Features AZ7500C The AZ7500C is a voltage mode pulse width modula-. Stable 5V Reference Voltage Trimmed to ±1.

AZ7500C Features

* AZ7500C The AZ7500C is a voltage mode pulse width modula-
* Stable 5V Reference Voltage Trimmed to ±1.0% tion switching regulator control circuit designed pri- Accuracy marily for power supply control.
* Uncommitted Output TR for 200mA Sink or Source Current The AZ7500C consists of a

AZ7500C Applications

* SMPS
* Back Light Inverter

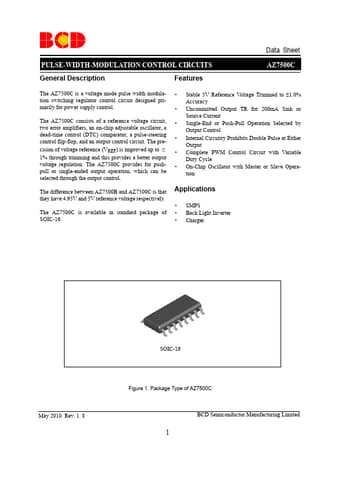

* Charger May 2010 Rev. 1. 8 SOIC-16 Figure 1. Package Type of AZ7500C BCD Semiconductor Manufacturing Limited 1 PULSE-WIDTH-MODULATION CONTROL CIRCUITS Pin Configuration M Package (SOIC-16) 1IN + 1 1IN - 2 FEEDBACK 3 DTC 4 CT 5 RT 6 GND 7 C1 8 16 2IN
