AP3605 4-Channel Charge Pump LED Driver

AP3605 Description

Data Sheet 4-Channel Charge Pump LED Driver with Current Balancing and Wide Range PWM Dimming AP3605 General .
Features The AP3605 is a step-up DC/DC converter based on 1.

AP3605 Features

* The AP3605 is a step-up DC/DC converter based on 1.5x charge pump current source, it is specially designed for LED supplies in backlight display. The AP3605 can provide constant current up to 20mA for each LED, which is programmed by an external resistor, so it has a total capability to provide 80m

AP3605 Applications

* powered by the Liion battery.
* Regulated Output Current with ±3% Matching
* Regulated ±10% Output Current Source
* Drive up to 4 LEDs at 20mA Each
* Wide Operating Voltage Range: 2.7V to 5.5V
* High Efficiency up to 93%
* High Operating Frequency: 1MHz
* Built-in Soft-S

📥 Download Datasheet

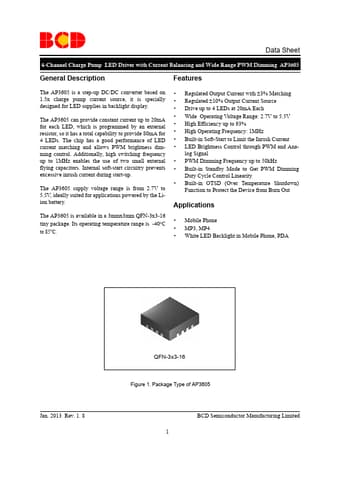

Preview of AP3605 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3605
Manufacturer
BCD Semiconductor
File Size
412.64 KB
Datasheet
AP3605-BCDSemiconductor.pdf
Description
4-Channel Charge Pump LED Driver
