AP3602B, AP3602A Datasheet - BCD Semiconductor

AP3602B REGULATED CHARGE PUMP

The AP3602A/B are regulated step-up DC/DC converters based on charge pump technique. These ICs have the ability to supply 100mA constant output current or 250mA peak output current for 100ms from 3.0V to 5V input (2.7V to 4.5 V for AP3602B), so they can be used as white LEDs driver or flash LED driv.

AP3602B Features

* include over-temperature protection, low temperature coefficient and etc. to meet some special requirements of hand-held battery powered devices. Only 3 external capacitors are required in applications, which helps to save space and lower cost. These chips also have a disable terminal to turn on or

AP3602A_BCDSemiconductor.pdf

This datasheet PDF includes multiple part numbers: AP3602B, AP3602A. Please refer to the document for exact specifications by model.

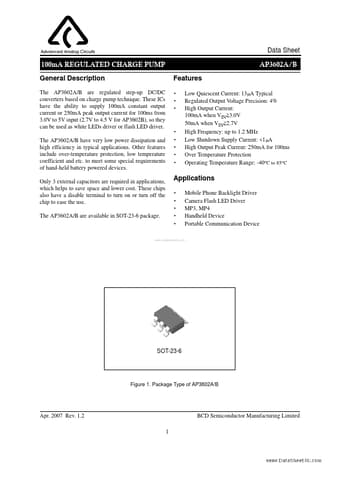

AP3602B Datasheet Preview Page 2 AP3602B Datasheet Preview Page 3

Datasheet Details

Part number:

AP3602B, AP3602A

Manufacturer:

BCD Semiconductor

File Size:

325.44 KB

Description:

Regulated charge pump.

Note:

This datasheet PDF includes multiple part numbers: AP3602B, AP3602A.
Please refer to the document for exact specifications by model.
