AP3001 PWM BUCK DC-DC CONVERTER

AP3001 Description

Preliminary Datasheet 150kHz 3A PWM BUCK DC-DC CONVERTER General .
The AP3001 series of regulators are fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with excellent line and load re.

AP3001 Features

* 3.3V, 5V Fixed and Adjustable Output Versions Guaranteed 3A Output Load Current 150kHz Fixed Frequency Internal Oscillator Excellent Line and Load Regulation TTL Shutdown Capability Low Power Standby Mode, IQ Typically 80µA Built-in Current Limit Protection

AP3001 Applications

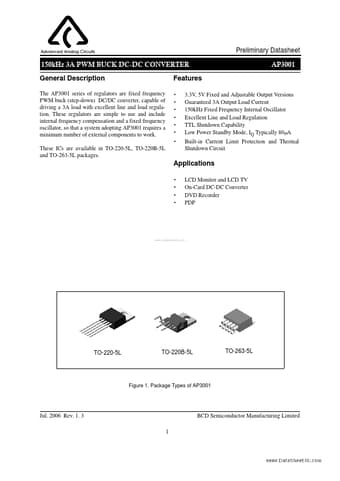

* LCD Monitor and LCD TV On-Card DC-DC Converter DVD Recorder PDP www. DataSheet4U. com TO-220-5L TO-220B-5L TO-263-5L Figure 1. Package Types of AP3001 Jul. 2006 Rev. 1. 3 1 BCD Semiconductor Manufacturing Limited Preliminary Datasheet 150kHz 3A PWM BUCK DC-DC CONVERTER
