HCPL-0723, HCPL-7723 50 MBd 2 ns PWD High Speed CMOS Optocoupler

HCPL-0723 Description

HCPL-7723/0723 50 MBd 2 ns PWD High Speed CMOS Optocoupler Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options available; .
Available in either 8-pin DIP or SO‑8 package style respectively, the HCPL-7723 or HCPL-0723 optocoupler utilize the latest CMOS IC technology to achi.

HCPL-0723 Features

* +5 V CMOS compatibility
* High speed: 50 MBd min.
* 2 ns max. pulse width distortion
* 22 ns max. prop. delay
* 16 ns max. prop. delay

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HCPL-0723, HCPL-7723. Please refer to the document for exact specifications by model.

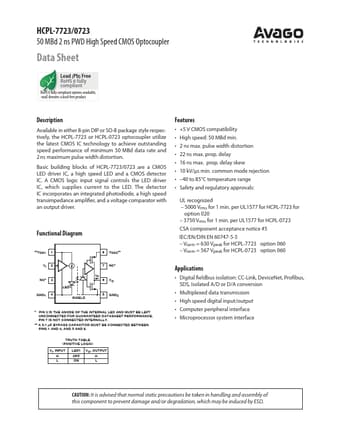

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL-0723, HCPL-7723
Manufacturer
Avago
File Size
153.98 KB
Datasheet
HCPL-7723-Avago.pdf
Description
50 MBd 2 ns PWD High Speed CMOS Optocoupler
Note
This datasheet PDF includes multiple part numbers: HCPL-0723, HCPL-7723.
Please refer to the document for exact specifications by model.
