HCPL-0720 - CMOS Optocoupler

Description

Available in either an 8-pin DIP or SO-8 package style respectively, the Broadcom® HCPL-772X or HCPL-072X optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption.

Features

  • +5V CMOS compatibility.
  • 20-ns max propagation delay skew.
  • High speed: 25 MBd.
  • 40-ns max propagation delay.
  • 10-kV/μs minimum common mode rejection.
  • 40 to +85°C temperature range.
  • Safety and regulatory approvals:.
  • UL recognized.
  • 3750 Vrms for 1 min. per UL 1577.
  • 5000 Vrms for 1 min. per UL 1577 (for HCPL-772X option 020).
  • CSA component acceptance notice #5.
  • IEC/EN/DIN EN 60747-5-5.
  • VIORM = 630 Vpeak for HCPL-772.

📥 Download Datasheet

📁 Similar Datasheet

  • HCPL-0720 - CMOS Optocoupler (Agilent)
  • HCPL-0720 - CMOS Optocoupler (Avago)
  • HCPL-0721 - CMOS Optocoupler (Agilent)
  • HCPL-0721 - CMOS Optocoupler (Avago)
  • HCPL-0723 - 50 MBd 2 ns PWD High Speed CMOS Optocoupler (Avago)
  • HCPL-0700 - LOW INPUT CURRENT HIGH GAIN SPLIT DARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • HCPL-0700 - High Gain Optocouplers (HP)
  • HCPL-0700 - High Gain Optocouplers (Avago)
  • HCPL-0701 - LOW INPUT CURRENT HIGH GAIN SPLIT DARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • HCPL-0701 - High Gain Optocouplers (HP)
Other Datasheets by Broadcom

Full PDF Text Transcription

Click to expand full text

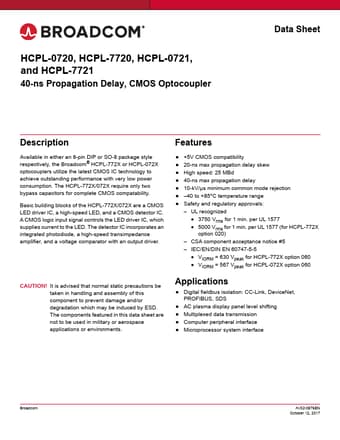

HCPL-0720, HCPL-7720, HCPL-0721, and HCPL-7721 40-ns Propagation Delay, CMOS Optocoupler Data Sheet Description Available in either an 8-pin DIP or SO-8 package style respectively, the Broadcom® HCPL-772X or HCPL-072X optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-772X/072X require only two bypass capacitors for complete CMOS compatability. Basic building blocks of the HCPL-772X/072X are a CMOS LED driver IC, a high-speed LED, and a CMOS detector IC. A CMOS logic input signal controls the LED driver IC, which supplies current to the LED. The detector IC incorporates an integrated photodiode, a high-speed transimpedance amplifier, and a voltage comparator with an output driver.
