ADNS-2030 - Low Power Optical Mouse Sensor

Product Overview

Avago

📥 Download Datasheet

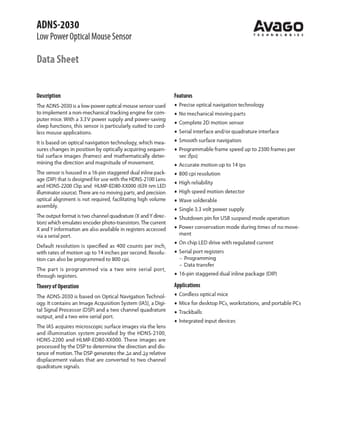

ADNS-2030 Low Power Optical Mouse Sensor by Avago - Datasheet Preview — Datasheet preview – ADNS-2030

Datasheet Details

Part number	ADNS-2030
Manufacturer	Avago
File Size	452.06 KB
Description	Low Power Optical Mouse Sensor
Datasheet	ADNS-2030 Datasheet
Additional preview pages of the ADNS-2030 datasheet.

Product details

Description

The ADNS-2030 is a low-power optical mouse sensor used to implement a non-mechanical tracking engine for computer mice.

Features

Precise optical navigation technology.
No mechanical moving parts.
Complete 2D motion sensor.
Serial interface and/or quadrature interface.
Smooth surface navigation.
Programmable frame speed up to 2300 frames per sec (fps).
Accurate motion up to 14 ips.
800 cpi resolution.
High reliability.
High speed motion detector.
Wave solderable.
Single 3.3 volt power supply.
S.
