AT49F8192A, AT49F008A (AT49F008A / AT49F8192A) 8-megabit (1M x 8 / 512K x 16) Flash Memory

AT49F8192A Description

.
The AT49F008A(T) and AT49F8192A(T) are 5-volt, 8-megabit Flash memories organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each.

AT49F8192A Features

* Single-voltage Operation
* 5V Read
* 5V Programming Fast Read Access Time
* 70 ns Internal Erase/Program Control Sector Architecture
* One 8K Word (16K Bytes) Boot Block with Programming Lockout
* Two 4K Word (8K Bytes)

AT49F8192A Applications

* When RESET is at a logic high level, the device is in its standard operating mode. A low level on the RESET input halts the present device operation and puts the outputs of the device in a high-impedance state. When a high level is reasserted on the RESET pin, the device returns to the read or stan

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AT49F8192A, AT49F008A. Please refer to the document for exact specifications by model.

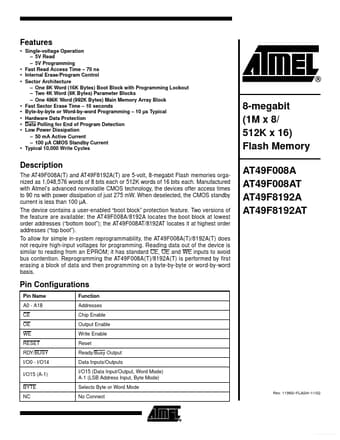

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT49F8192A, AT49F008A
Manufacturer
Atmel
File Size
195.47 KB
Datasheet
AT49F008A-Atmel.pdf
Description
(AT49F008A / AT49F8192A) 8-megabit (1M x 8 / 512K x 16) Flash Memory
Note
This datasheet PDF includes multiple part numbers: AT49F8192A, AT49F008A.
Please refer to the document for exact specifications by model.
