AT49F8192 8-Megabit 5-volt Only CMOS Flash Memory

AT49F8192 Description

.
The AT49F8192 is a 5-volt-only, 8 megabit Flash Memory organized as 512K words of 16 bits each.

AT49F8192 Features

* Single Voltage Operation
* 5V Read
* 5V Reprogramming
* Fast Read Access Time - 90 ns
* Internal Erase/Program Control
* Sector Architecture
* One 8K Words (16K bytes) Boot Block with Programming Lockout
* Two 8K Words (16K bytes) Par

📥 Download Datasheet

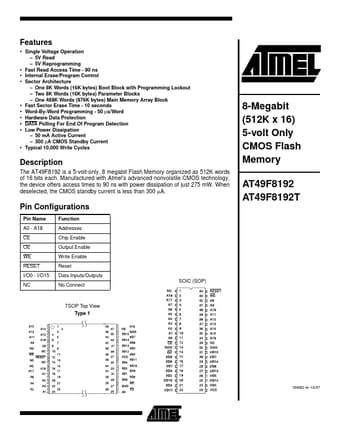

Preview of AT49F8192 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT49F8192
Manufacturer
ATMEL
File Size
240.85 KB
Datasheet
AT49F8192-ATMEL.pdf
Description
8-Megabit 5-volt Only CMOS Flash Memory
