AR8228, AR8229 Seven-Port Fast Ethernet Switch

AR8228 Description

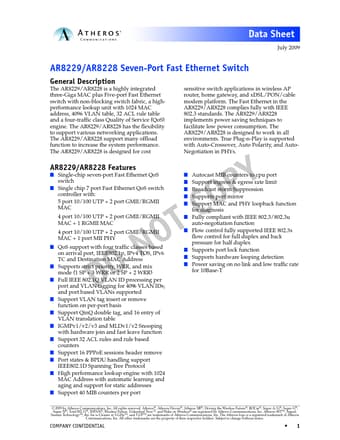

Data Sheet July 2009 AR8229/AR8228 Seven-Port Fast Ethernet Switch General .
The AR8229/AR8228 is a highly integrated three-Giga MAC plus Five-port Fast Ethernet switch with non-blocking switch fabric, a highperformance lookup.

AR8228 Features

* Single-chip seven-port Fast Ethernet QoS switch
* Single chip 7 port Fast Ethernet QoS switch controller with: 5 port 10/100 UTP + 2 port GMII/RGMII MAC 4 port 10/100 UTP + 2 port GMII/RGMII MAC + 1 RGMII MAC 4 port 10/100 UTP + 2 port GMII/RGMII MAC + 1 port MII PHY
* QoS support wi

AR8228 Applications

* The AR8229/AR8228 support many offload function to increase the system performance. The AR8229/AR8228 is designed for cost sensitive switch applications in wireless AP router, home gateway, and xDSL/PON/cable modem platform. The Fast Ethernet in the AR8229/AR8228 complies fully with IEEE 802.3 stan

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AR8228, AR8229. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AR8228, AR8229
Manufacturer
Atheros
File Size
1.41 MB
Datasheet
AR8229-Atheros.pdf
Description
Seven-Port Fast Ethernet Switch
Note
This datasheet PDF includes multiple part numbers: AR8228, AR8229.
Please refer to the document for exact specifications by model.
