ADX111, ADX111-1 - 16-Bit ADC

📥 Download Datasheet

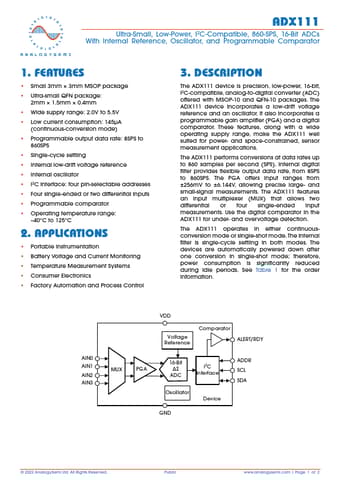

ADX111 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADX111, ADX111-1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ADX111, ADX111-1
Manufacturer	AnalogySemi
File Size	662.15 KB
Description	16-Bit ADC
Datasheet	ADX111-1-AnalogySemi.pdf
Note	This datasheet PDF includes multiple part numbers: ADX111, ADX111-1. Please refer to the document for exact specifications by model.

ADX111 Product details

Description

The ADX111 device is precision, low-power, 16-bit, I2C-compatible, analog-to-digital converter (ADC) offered with MSOP-10 and QFN-10 packages.

Features

Small 3mm × 3mm MSOP package.
Ultra-small QFN package: 2mm × 1.5mm × 0.4mm.
Wide supply range: 2.0V to 5.5V.
Low current consumption: 145µA (continuous-conversion mode).
Programmable output data rate: 8SPS to 860SPS.
Single-cycle settling.
Internal low-drift voltage reference.
Internal oscillator.
I2C interface: four pin-selectable addresses.
Four single-ended or two differential inputs.
Programma.
