ADX921 - 24-Bit Analog Front-End

Download the ADX921 datasheet PDF. This datasheet also covers the ADX920 variant, as both devices belong to the same 24-bit analog front-end family and are provided as variant models within a single manufacturer datasheet.

Description

The ADX920/1/2/3 devices are multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

Features

  • Three low-noise (ADX923) PGAs and two highresolution ADCs (ADX922/3).
  • Input-referred noise: 8.6μVPP (G = 6).
  • Input bias current: 100pA.
  • Data rate: 125SPS to 8kSPS.
  • CMRR: 117dB; THD:.
  • 107dB.
  • Programmable gain: 1, 2, 3, 4, 6, 8, or 12.
  • Supplies: unipolar or bipolar Analog: 2.7V to 5.5V Digital: 1.65V to 3.6V.
  • Built-in right leg drive amplifier, lead-off detection, test signals.
  • Integrated respiration impedanc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADX920-AnalogySemi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ADX921
Manufacturer AnalogySemi
File Size 1.32 MB
Description 24-Bit Analog Front-End
Datasheet download datasheet ADX921 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADXL001 Wide Bandwidth Accelerometer Analog Devices
ADXL05 Single Chip Accelerometer Analog Devices
ADXL1001 High Frequency MEMS Accelerometers Analog Devices
ADXL1002 High Frequency MEMS Accelerometers Analog Devices
ADXL1003 MEMS Accelerometer Analog Devices

Other Datasheets by AnalogySemi

Part Number Description
ADX920 24-Bit Analog Front-End
ADX922 24-Bit Analog Front-End
ADX923 24-Bit Analog Front-End
ADX111 16-Bit ADC
ADX111Q 16-Bit ADC

Full PDF Text Transcription

Click to expand full text

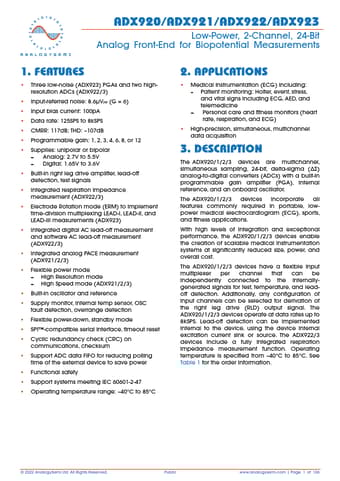

ADX920/ADX921/ADX922/ADX923 Low-Power, 2-Channel, 24-Bit Analog Front-End for Biopotential Measurements 1. FEATURES • Three low-noise (ADX923) PGAs and two highresolution ADCs (ADX922/3) • Input-referred noise: 8.6μVPP (G = 6) • Input bias current: 100pA • Data rate: 125SPS to 8kSPS • CMRR: 117dB; THD: –107dB • Programmable gain: 1, 2, 3, 4, 6, 8, or 12 • Supplies: unipolar or bipolar Analog: 2.7V to 5.5V Digital: 1.65V to 3.
