MAX20043F, MAX20042F - Automotive Hi-Speed USB 2.0 Protectors

Analog Devices

The MAX20043F by Analog Devices is a Automotive Hi-Speed USB 2.0 Protectors. Below is the official datasheet preview.

📥 Download Datasheet

MAX20043F Automotive Hi-Speed USB 2.0 Protectors by Analog Devices - Datasheet Preview — Official preview page of the **MAX20043F** Automotive Hi-Speed USB 2.0 Protectors datasheet (Analog Devices).

Datasheet Details

Part number	MAX20043F, MAX20042F
Manufacturer	Analog Devices
File Size	2.07 MB
Description	Automotive Hi-Speed USB 2.0 Protectors
Datasheet	MAX20042F-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: MAX20043F, MAX20042F. Please refer to the document for exact specifications by model.

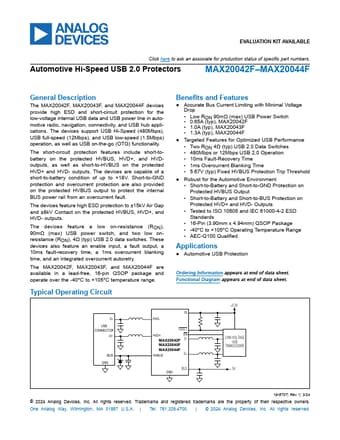

Additional preview pages of the MAX20043F datasheet.

MAX20043F Product details

Description

The MAX20042F, MAX20043F, and MAX20044F devices provide high ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications.

Features

include short-tobattery on the protected HVBUS, HVD+, and HVDoutputs, as well as short-to-HVBUS on the protected HVD+ and HVD- outputs. The devices are capable of a short-to-battery condition of up to +18V. Short-to-GND protection and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from an overcurrent fault. The devices feature high ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs. The de.
