MAX20042F Datasheet PDF (Automotive Hi-Speed USB 2.0 Protectors)

MAX20042F - Automotive Hi-Speed USB 2.0 Protectors

Description

The MAX20042F, MAX20043F, and MAX20044F devices provide high ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications.

Features

include short-tobattery on the protected HVBUS, HVD+, and HVDoutputs, as well as short-to-HVBUS on the protected HVD+ and HVD- outputs. The devices are capable of a short-to-battery condition of up to +18V. Short-to-GND protection and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from an overcurrent fault. The devices feature high ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs. The de.

Datasheet Details

Part number	MAX20042F
Manufacturer	Analog Devices
File Size	2.07 MB
Description	Automotive Hi-Speed USB 2.0 Protectors
Datasheet	MAX20042F Datasheet

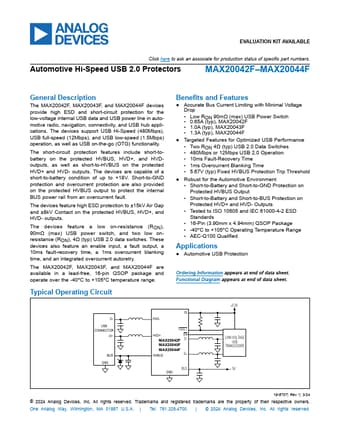

Additional preview pages of the MAX20042F datasheet.

📁 Similar Datasheet

MAX200 - RS-232 Transceivers (Maxim)

MAX20002 - 2A/3A Fully Integrated Step-Down Converters (Maxim Integrated)

MAX20003 - 2A/3A Fully Integrated Step-Down Converters (Maxim Integrated)

MAX20021 - Step-Down DC-DC Converters (Maxim Integrated)

MAX20022 - Step-Down DC-DC Converters (Maxim Integrated)

MAX2003 - NiCd/NiMH Battery Fast-Charge Controllers (Maxim)

MAX2003A - NiCd/NiMH Battery Fast-Charge Controllers (Maxim Integrated)

MAX20070 - Integrated TFT Power Supplies and LED Backlight Drivers (Maxim Integrated)

MAX20070B - Integrated TFT Power Supplies and LED Backlight Drivers (Maxim Integrated)

MAX2009 - 1200MHz to 2500MHz Adjustable RF Predistorter (Maxim)

Full PDF Text Transcription

Click to expand full text

EVALUATION KIT AVAILABLE Click here to ask an associate for production status of specific part numbers. Automotive Hi-Speed USB 2.0 Protectors MAX20042F–MAX20044F General Description The MAX20042F, MAX20043F, and MAX20044F devices provide high ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The devices support USB Hi-Speed (480Mbps), USB full-speed (12Mbps), and USB low-speed (1.5Mbps) operation, as well as USB on-the-go (OTG) functionality. The short-circuit protection features include short-tobattery on the protected HVBUS, HVD+, and HVDoutputs, as well as short-to-HVBUS on the protected HVD+ and HVD- outputs.
