LTM8078 - Step-Down Silent Switcher uModule Regulator

📥 Download Datasheet

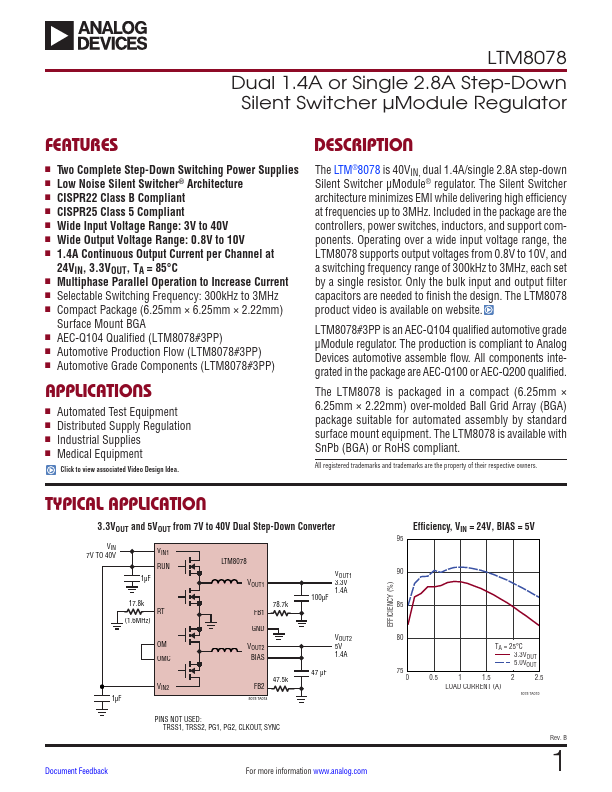

Preview of LTM8078 PDF

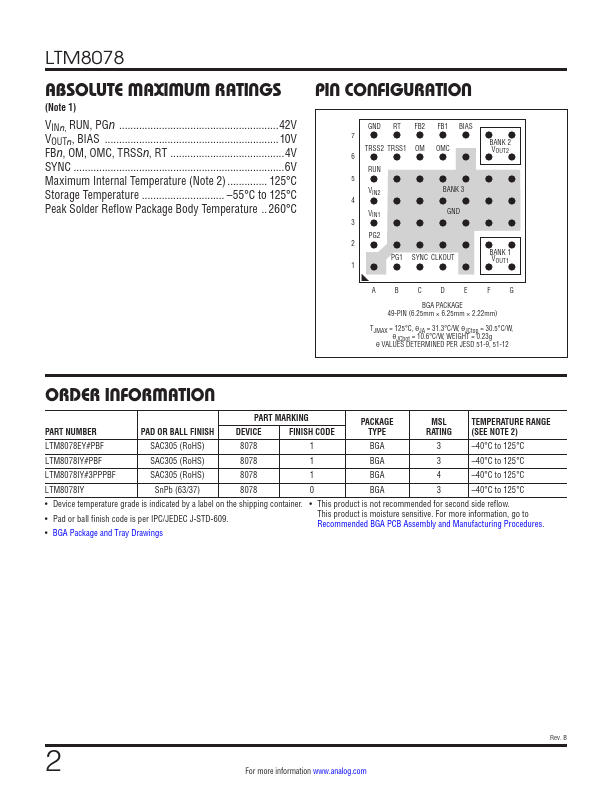

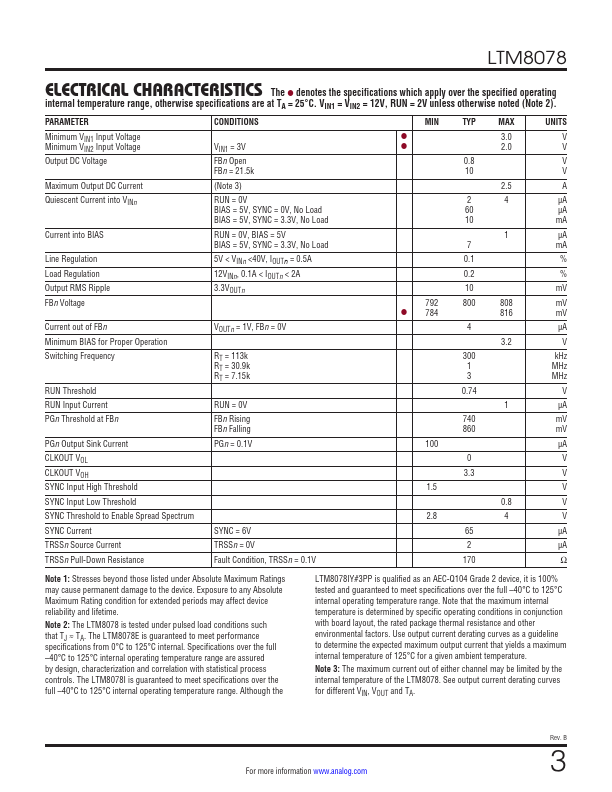

datasheet Preview Page 2 datasheet Preview Page 3

LTM8078 Product details

Description

n Two Complete Step-Down Switching Power Supplies n Low Noise Silent Switcher® Architecture n CISPR22 Class B Compliant n CISPR25 Class 5 Compliant n Wide Input Voltage Range: 3V to 40V n Wide Output Voltage Range: 0.8V to 10V n 1.4A Continuous Output Current per Channel at 24VIN, 3.3VOUT, TA = 85°C n Multiphase Parallel Operation to Increase Current n Selectable Switching Frequency: 300kHz to 3MHz n Compact Package (6.25mm × 6.25mm × 2.22mm) Surface Mount BGA n AEC-Q104 Qualified (LTM8078#3PP)
