HMC1118 Nonrefective Switch

HMC1118 Description

Product Overview Data Sheet Online Documentation Design Resources Discussion Sample & Buy High Isolation, Silicon SPDT, Nonrefective Switch, 9 k.
The HMC1118 is a general-purpose, broadband, nonreflective single-pole, double-throw (SPDT) switch in a LFCSP surface mount package.

HMC1118 Features

* Nonreflective 50 Ω design Positive control: 0 V/3.3 V Low insertion loss: 0.68 dB at 8.0 GHz High isolation: 48 dB at 8.0 GHz High power handling 35 dBm through path 27 dBm terminated path High linearity 1 dB compression (P1dB): 37 dBm typical Input third-order intercept (IIP3): 62 dBm typical ESD r

HMC1118 Applications

* Test instrumentation Microwave radios and very small aperture terminals (VSATs) Military radios, radars, and electronic counter measures (ECMs) Fiber optics and broadband telecommunications FUNCTIONAL BLOCK DIAGRAM 16 GND 15 GND 14 RF1 13 GND GND 1 HMC1118 GND 2 RFC 3 GND 4 50Ω 12 VDD 11 LS 50Ω

📥 Download Datasheet

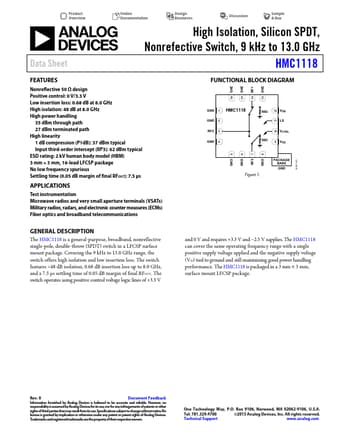

Preview of HMC1118 PDF
datasheet Preview Page 2 datasheet Preview Page 3
