ADV3202 - 32 X 16 Buffered Analog Crosspoint Switch

Name: ADV3202
SKU: ADV3202-651441

Analog Devices

📥 Download Datasheet

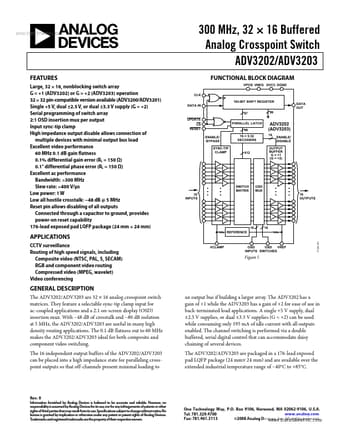

ADV3202 Datasheet Preview — Preview of ADV3202 PDF

Datasheet Details

Part number	ADV3202
Manufacturer	Analog Devices
File Size	605.87 KB
Description	32 X 16 Buffered Analog Crosspoint Switch
Datasheet	ADV3202_AnalogDevices.pdf

ADV3202 Product details

Description

The ADV3202/ADV3203 are 32 × 16 analog crosspoint switch matrices. 48 dB of crosstalk and 80 dB isolation at 5 MHz, the ADV3202/ADV3203 are useful in many high density routing applications.

Features

Large, 32 × 16, nonblocking switch array G = +1 (ADV3202) or G = +2 (ADV3203) operation 32 × 32 pin-compatible version available (ADV3200/ADV3201) Single +5 V, dual ±2.5 V, or dual ±3.3 V supply (G = +2) Serial programming of switch array 2:1 OSD insertion mux per output Input sync-tip clamp High impedance output disable allows connection of multiple devices with minimal output bus load Excellent video performance 60 MHz 0.1 dB gain flatness 0.1% differential gain error (RL = 150 Ω) 0.1° differe.
