ADP3204, ADP - 3-Phase IMVP-II and IMVP-III Core Controller

Analog Devices

📥 Download Datasheet

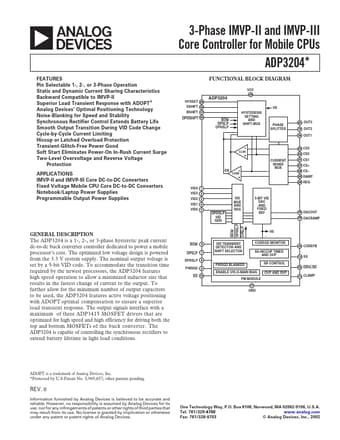

ADP3204 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADP3204, ADP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ADP3204, ADP
Manufacturer	Analog Devices
File Size	1.28 MB
Description	3-Phase IMVP-II and IMVP-III Core Controller
Datasheet	ADP-3204.pdf
Note	This datasheet PDF includes multiple part numbers: ADP3204, ADP. Please refer to the document for exact specifications by model.

ADP3204 Product details

Description

VR The ADP3204 is a 1-, 2-, or 3-phase hysteretic peak current dc-to-dc buck converter controller dedicated to power a mobile processor’s core.The optimized low voltage design is powered from the 3.3 V system supply.The nominal output voltage is set by a 5-bit VID code.To accommodate the transition time required by the newest processors, the ADP3204

Features

Pin Selectable 1-, 2-, or 3-Phase Operation Static and Dynamic Current Sharing Characteristics Backward Compatible to IMVP-II Superior Load Transient Response with ADOPT® Analog Devices’ Optimal Positioning Technology Noise-Blanking for Speed and Stability Synchronous Rectifier Control Extends Battery Life Smooth Output Transition During VID Code Change Cycle-by-Cycle Current Limiting Hiccup or Latched Overload Protection Transient-Glitch-Free Power Good Soft Start Eliminates Power-On In-Rush Cu.
