ADP320 - High PSRR Voltage Regulator

Name: ADP320
SKU: ADP320-695517

Analog Devices

📥 Download Datasheet

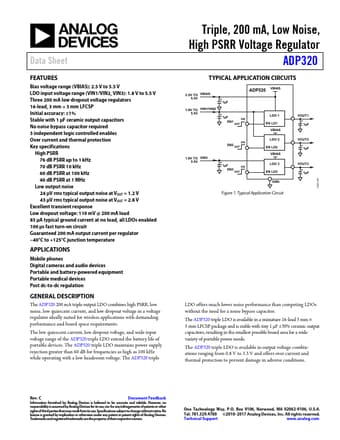

ADP320 Datasheet Preview — Preview of ADP320 PDF

Datasheet Details

Part number	ADP320
Manufacturer	Analog Devices
File Size	1.07 MB
Description	High PSRR Voltage Regulator
Datasheet	ADP320_AnalogDevices.pdf

ADP320 Product details

Description

The ADP320 200 mA triple output LDO combines high PSRR, low noise, low quiescent current, and low dropout voltage in a voltage regulator ideally suited for wireless applications with demanding performance and board space requirements.

Features

Bias voltage range (VBIAS): 2.5 V to 5.5 V LDO input voltage range (VIN1/VIN2, VIN3): 1.8 V to 5.5 V Three 200 mA low dropout voltage regulators 16-lead, 3 mm × 3 mm LFCSP Initial accuracy: ±1% Stable with 1 µF ceramic output capacitors No noise bypass capacitor required 3 independent logic controlled enables Over current and thermal protection Key specifications High PSRR 76 dB PSRR up to 1 kHz 70 dB PSRR 10 kHz 60 dB PSRR at 100 kHz 40 dB PSRR at 1 MHz Low output noise 24 µV rms typical output.
