The ADM6319 by Analog Devices is a Supervisory Circuits. Below is the official datasheet preview.

📥 Download Datasheet

ADM6319 Supervisory Circuits by Analog Devices - Datasheet Preview — Official preview page of the **ADM6319** Supervisory Circuits datasheet (Analog Devices).

Datasheet Details

Part number	ADM6319, ADM6316
Manufacturer	Analog Devices
File Size	342.25 KB
Description	Supervisory Circuits
Datasheet	ADM6316-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADM6319, ADM6316. Please refer to the document for exact specifications by model.

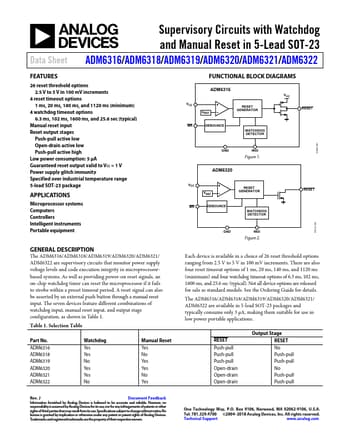

Additional preview pages of the ADM6319 datasheet.

ADM6319 Product details

Description

The ADM6316/ADM6318/ADM6319/ADM6320/ADM6321/ ADM6322 are supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessorbased systems.

Features

26 reset threshold options 2.5 V to 5 V in 100 mV increments 4 reset timeout options 1 ms, 20 ms, 140 ms, and 1120 ms (minimum) 4 watchdog timeout options 6.3 ms, 102 ms, 1600 ms, and 25.6 sec (typical) Manual reset input Reset output stages Push-pull active low Open-drain active low Push-pull active high Low power consumption: 5 μA Guaranteed reset output valid to VCC = 1 V Power supply glitch immunity Specified over industrial temperature range 5-lead SOT-23 package.
