AD5161 - 256-Position SPI/I2C Selectable Digital Potentiometer

Analog Devices

Datasheet Details

Part number	AD5161
Manufacturer	Analog Devices
File Size	466.82 KB
Description	256-Position SPI/I2C Selectable Digital Potentiometer
Datasheet	AD5161_AnalogDevices.pdf

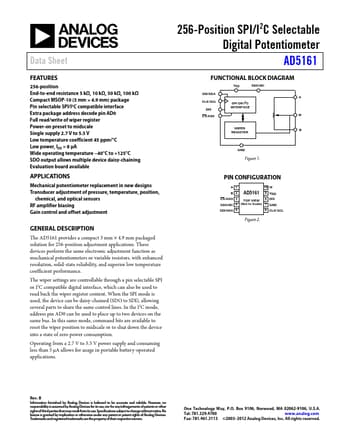

The AD5161 provides a compact 3 mm × 4.9 mm packaged solution for 256-position adjustment applications.

256-position End-to-end resistance 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ Compact MSOP-10 (3 mm × 4.9 mm) package Pin selectable SPI/I2C compatible interface Extra package address decode pin AD0 Full read/write of wiper register Power-on preset to midscale Single supply 2.7 V to 5.5 V Low temperature coefficient 45 ppm/°C Low power, IDD = 8 µA Wide operating temperature.
40°C to +125°C SDO output allows multiple device daisy-chaining Evaluation board available.
