AD51058C - 15W Mono Class-D Audio Amplifier

ESMT

📥 Download Datasheet

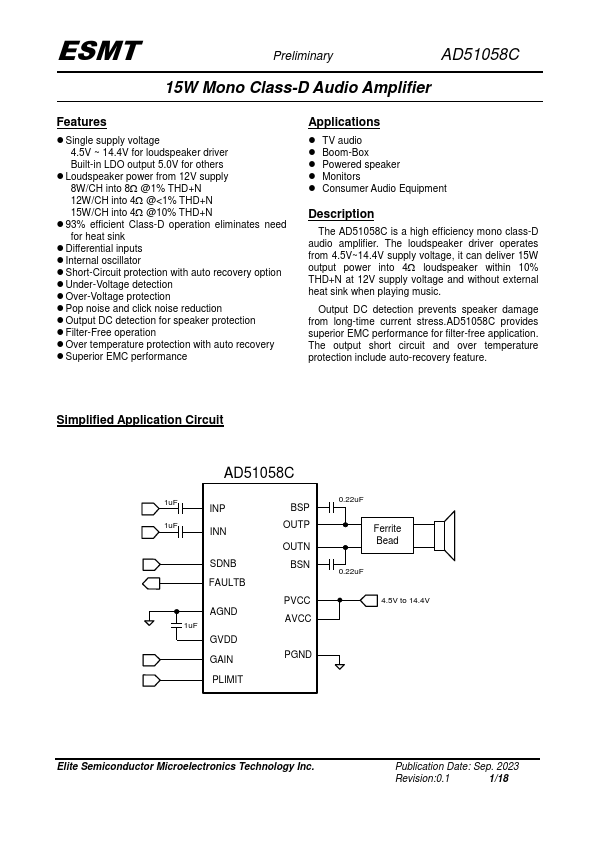

AD51058C Datasheet Preview — Preview of AD51058C PDF

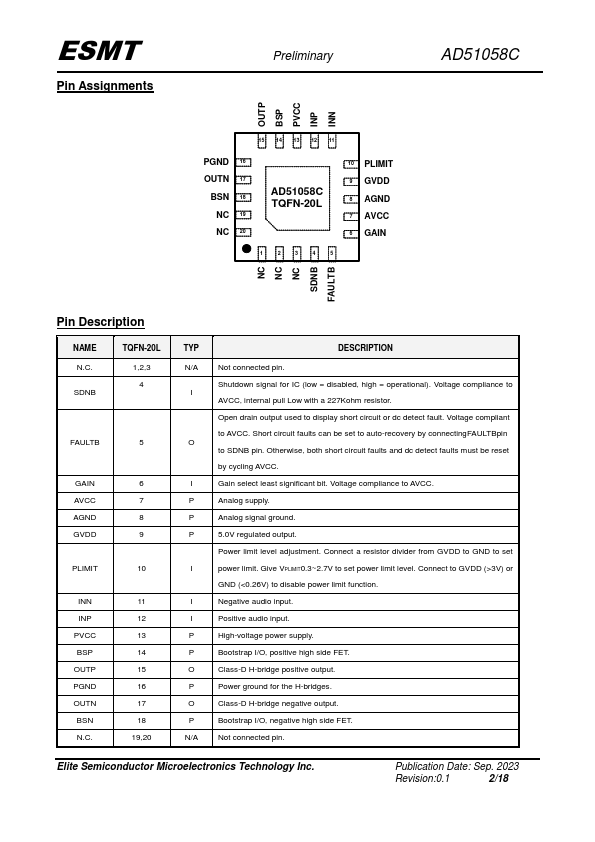

datasheet Preview Page 2

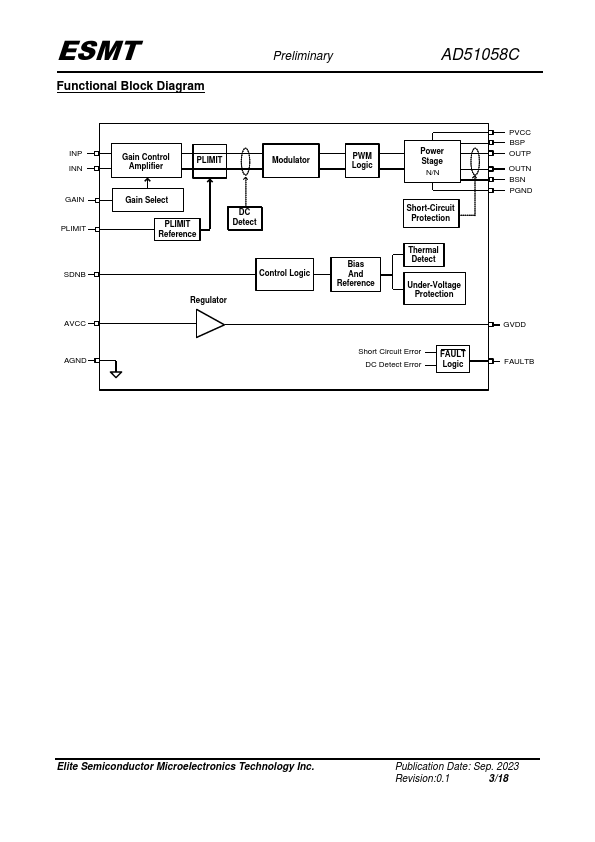

datasheet Preview Page 3

Datasheet Details

Part number	AD51058C
Manufacturer	ESMT
File Size	1.12 MB
Description	15W Mono Class-D Audio Amplifier
Datasheet	AD51058C-ESMT.pdf

AD51058C Product details

Description

The AD51058C is a high efficiency mono class-D audio amplifier.

Features

Single supply voltage 4.5V ~ 14.4V for loudspeaker driver Built-in LDO output 5.0V for others.
Loudspeaker power from 12V supply 8W/CH into 8 @1% THD+N 12W/CH into 4 @.
