AD4698 - Easy Drive Multiplexed SAR ADC

Product Overview

Analog Devices

Datasheet Details

Part number	AD4698
Manufacturer	Analog Devices
File Size	5.02 MB
Description	Easy Drive Multiplexed SAR ADC
Datasheet	AD4698 Datasheet
Note	This datasheet PDF includes multiple part numbers: AD4698, AD4697. Please refer to the document for exact specifications by model.

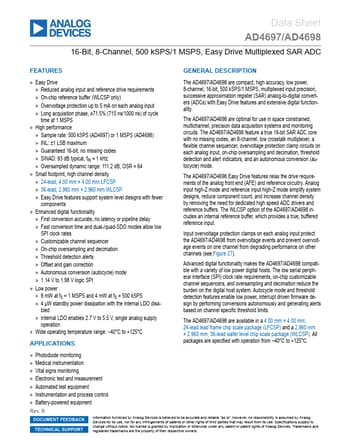

Additional preview pages of the AD4698 datasheet.

Product details

Description

Easy Drive Reduced analog input and reference drive requirements On-chip reference buffer (WLCSP only) Overvoltage protection up to 5 mA on each analog input Long acquisition phase, ≥71.5% (715 ns/1000 ns) of cycle time at 1 MSPS High performance Sample rate: 500 kSPS (AD4697) or 1 MSPS (AD4698) INL: ±1 LSB maximum Guaranteed 16-bit, no missing codes SINAD: 93 dB typical, fIN = 1 kHz Oversampled dynamic range: 111.2 dB, OSR = 64
