AD4696 - 16-Bit 16-Channel Easy Drive Multiplexed SAR ADC

Product Overview

Analog Devices

Datasheet Details

Part number	AD4696
Manufacturer	Analog Devices
File Size	4.67 MB
Description	16-Bit 16-Channel Easy Drive Multiplexed SAR ADC
Datasheet	AD4696 Datasheet
Note	This datasheet PDF includes multiple part numbers: AD4696, AD4695. Please refer to the document for exact specifications by model.

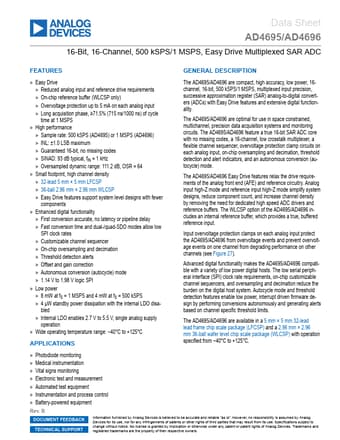

Additional preview pages of the AD4696 datasheet.

Product details

Description

Easy Drive Reduced analog input and reference drive requirements On-chip reference buffer (WLCSP only) Overvoltage protection up to 5 mA on each analog input Long acquisition phase, ≥71.5% (715 ns/1000 ns) of cycle time at 1 MSPS High performance Sample rate: 500 kSPS (AD4695) or 1 MSPS (AD4696) INL: ±1.0 LSB maximum Guaranteed 16-bit, no missing codes SINAD: 93 dB typical, fIN = 1 kHz Oversampled dynamic range: 111.2 dB, OSR = 6
