3B44 - (3B42 - 3B44) Isolated AC Sine Wave Input

Product Overview

Analog Devices

Datasheet Details

Part number	3B44
Manufacturer	Analog Devices
File Size	551.01 KB
Description	(3B42 - 3B44) Isolated AC Sine Wave Input
Datasheet	3B44 Datasheet
Note	This datasheet PDF includes multiple part numbers: 3B44, 3B42. Please refer to the document for exact specifications by model.

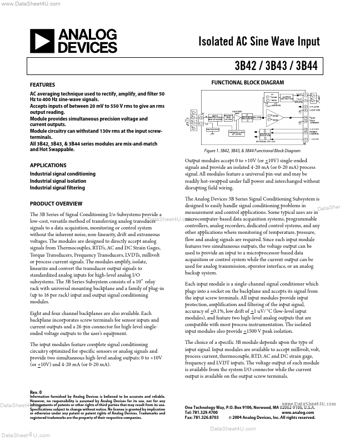

Additional preview pages of the 3B44 datasheet.

Product details

Description

The 3B42, 3B43, and 3B44 are single-channel AC sine wave signal conditioning modules which use an AC averaging technique to rectify, amplify, and filter 50 Hz to 400 Hz sinewave signals ranging from 20 mV to 550 V rms to give an rms output reading.

Features

AC averaging technique used to rectify, amplify, and filter 50 Hz to 400 Hz sine-wave signals. Accepts inputs of between 20 mV to 550 V rms to give an rms output reading. Module provides simultaneous precision voltage and current outputs. Module circuitry can withstand 130v rms at the input screwterminals. All 3B42, 3B43, & 3B44 series modules are mix-and-match and Hot Swappable.
