3B43 - (3B42 - 3B44) Isolated AC Sine Wave Input

Download the 3B43 datasheet PDF (3B42 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (3b42 - 3b44) isolated ac sine wave input.

Description

The 3B42, 3B43, and 3B44 are single-channel AC sine wave signal conditioning modules which use an AC averaging technique to rectify, amplify, and filter 50 Hz to 400 Hz sinewave signals ranging from 20 mV to 550 V rms to give an rms output reading.

Features

  • AC averaging technique used to rectify, amplify, and filter 50 Hz to 400 Hz sine-wave signals. Accepts inputs of between 20 mV to 550 V rms to give an rms output reading. Module provides simultaneous precision voltage and current outputs. Module circuitry can withstand 130v rms at the input screwterminals. All 3B42, 3B43, & 3B44 series modules are mix-and-match and Hot Swappable.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3B42_AnalogDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3B43
Manufacturer Analog Devices
File Size 551.01 KB
Description (3B42 - 3B44) Isolated AC Sine Wave Input
Datasheet download datasheet 3B43 Datasheet

📁 Similar Datasheet

  • 3B4B41 - Rectifier Stack (Toshiba)
Other Datasheets by Analog Devices
  • 3B42 - (3B42 - 3B44) Isolated AC Sine Wave Input
  • 3B44 - (3B42 - 3B44) Isolated AC Sine Wave Input
  • 3B45 - (3B45 / 3B46) Isolated Frequency Input
  • 3B46 - (3B45 / 3B46) Isolated Frequency Input
  • 3B47 - Isolated / Linearized / Thermocouple Input

Full PDF Text Transcription

Click to expand full text

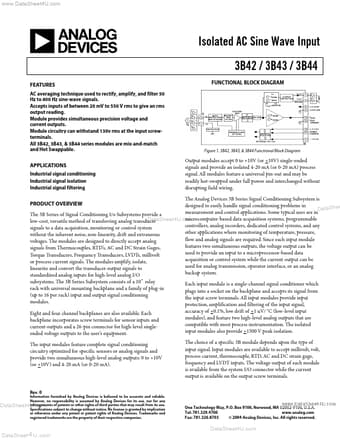

www.DataSheet4U.com Isolated AC Sine Wave Input 3B42 / 3B43 / 3B44 FEATURES AC averaging technique used to rectify, amplify, and filter 50 Hz to 400 Hz sine-wave signals. Accepts inputs of between 20 mV to 550 V rms to give an rms output reading. Module provides simultaneous precision voltage and current outputs. Module circuitry can withstand 130v rms at the input screwterminals. All 3B42, 3B43, & 3B44 series modules are mix-and-match and Hot Swappable. FUNCTIONAL BLOCK DIAGRAM Figure 1. 3B42, 3B43, & 3B44 Functional Block Diagram APPLICATIONS Industrial signal conditioning Industrial signal isolation Industrial signal filtering Output modules accept 0 to +10V (or +10V) single-ended signals and provide an isolated 4-20 mA (or 0-20 mA) process signal.
