SSL56B, SSL54B Schottky Rectifier

SSL56B Description

SSL54B THRU SSL510B Schottky Rectifier * .

SSL56B Features

* Io 5.0A
* VRRM 40V~100V
* ， Low VF，Low power loss
* High surge forward current capability

SSL56B Applications

* Rectifier
* Outline Dimensions and Mark D O -2 1 4A A (S M B ) .085(2.15) .073(1.85) .154(3.90) .130(3.30) M ounting Pad Layout .187(4.75) .161(4.10) 0.106 (2.69) .091(2.30) .083(2.10) .056(1.41) .030(0.76) .008(0.20) .003(0.08) .012(0.31) .006(0.15) 0.081(2.072) 0.220 (5.58)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSL56B, SSL54B. Please refer to the document for exact specifications by model.

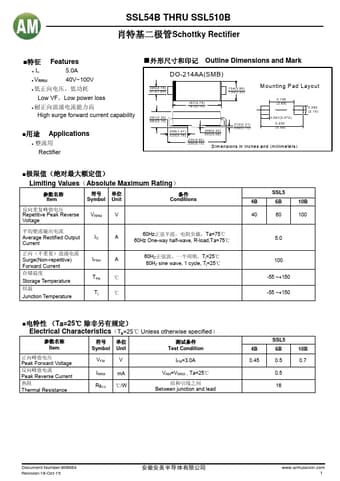

datasheet Preview Page 2

Datasheet Details

Part number
SSL56B, SSL54B
Manufacturer
An hui Anmei Semiconductor
File Size
447.19 KB
Datasheet
SSL54B-AnhuiAnmeiSemiconductor.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SSL56B, SSL54B.
Please refer to the document for exact specifications by model.
