BLF8G22LS-270V - Power LDMOS transistor

Ampleon

The BLF8G22LS-270V by Ampleon is a Power LDMOS transistor. Below is the official datasheet preview.

📥 Download Datasheet

BLF8G22LS-270V Power LDMOS transistor by Ampleon - Datasheet Preview — Official preview page of the BLF8G22LS-270V Power LDMOS transistor datasheet (Ampleon).

Datasheet Details

Part number	BLF8G22LS-270V
Manufacturer	Ampleon
File Size	431.01 KB
Description	Power LDMOS transistor
Datasheet	BLF8G22LS-270V-Ampleon.pdf

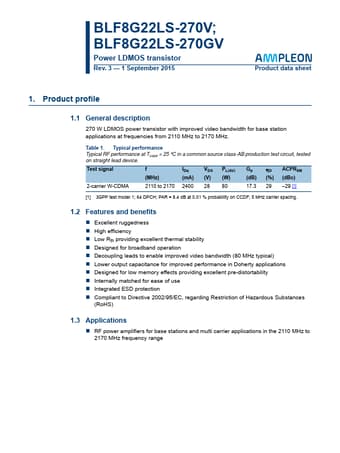

Additional preview pages of the BLF8G22LS-270V datasheet.

BLF8G22LS-270V Product details

Description

270 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 2110 MHz to 2170 MHz.

Features

Excellent ruggedness.
High efficiency.
Low Rth providing excellent thermal stability.
Designed for broadband operation.
Decoupling leads to enable improved video bandwidth (80 MHz typical).
Lower output capacitance for improved performance in Doherty.
