BLD6G22LS-50, BLD6G22L-50 - W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor

BLD6G22LS-50 Description

BLD6G22L-50; BLD6G22LS-50 W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor Rev.4 * 1 September 2015 Product data sheet 1..
The BLD6G22L-50 and BLD22LS-50 incorporate a fully integrated Doherty solution using Ampleon’s state of the art GEN6 LDMOS technology.

BLD6G22LS-50 Features

* Typical W-CDMA performance at frequencies from 2110 MHz to 2170 MHz:
* Average output power = 8 W
* Power gain = 14 dB
* Efficiency = 40 %
* Fully optimized integrated Doherty concept:
* integrated asymmetrical power splitter at input
* integrated power combiner
* p

BLD6G22LS-50 Applications

* at frequencies from 2110 MHz to 2170 MHz. The main and peak device, input splitter and output combiner are integrated in a single package. This package consists of one gate and drain lead and two extra leads of which one is used for biasing the peak amplifier and the other is not connected. It only

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BLD6G22LS-50, BLD6G22L-50. Please refer to the document for exact specifications by model.

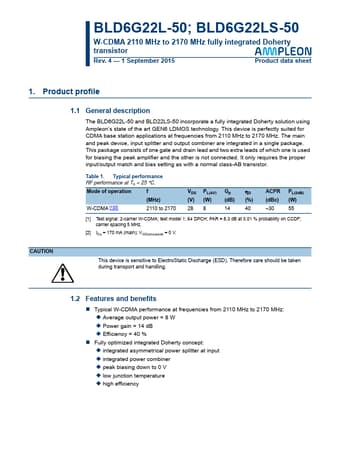

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BLD6G22LS-50, BLD6G22L-50
Manufacturer
Ampleon
File Size
0.98 MB
Datasheet
BLD6G22L-50-Ampleon.pdf
Description
W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor
Note
This datasheet PDF includes multiple part numbers: BLD6G22LS-50, BLD6G22L-50.
Please refer to the document for exact specifications by model.
