AVRC0805, AVRC - RC Type Filter

Amotech

The AVRC0805 by Amotech is a RC Type Filter. Below is the official datasheet preview.

📥 Download Datasheet

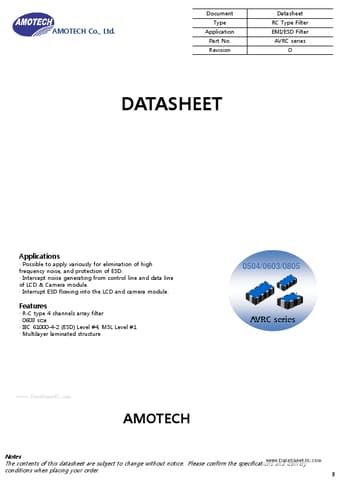

AVRC0805 RC Type Filter by Amotech - Datasheet Preview — Official preview page of the **AVRC0805** RC Type Filter datasheet (Amotech).

Datasheet Details

Part number	AVRC0805, AVRC
Manufacturer	Amotech
File Size	803.08 KB
Description	RC Type Filter
Datasheet	AVRC_Amotech.pdf
Note	This datasheet PDF includes multiple part numbers: AVRC0805, AVRC. Please refer to the document for exact specifications by model.
Additional preview pages of the AVRC0805 datasheet.

AVRC0805 Product details

Description

AVRC (1) (1) (2) (3) (4) (5) (6) (7) 5 (2) S (3) 03 (4) Q (5) 050 (6) 100R (7) Series name : “AVRC” - R-C Type EMI & ESD filter Maximum continuous working voltage (Vdc) : “5”- 5.5V, “14”- 14V, “18”-18V Varistor voltage tolerance : “S” - special order Chip Size : “03” - 0603 (1.6 x 0.8 mm) Configuration : “Q”- Quad array (4 elements) Capacitance : “050” - C1+C2 = 50 pF, Typical Resistance : “100R” 100 ± 30 Ω www.DataSheet4U.com 07/01/12 (Rev.00) Amotech Corporation (www.amot

Features

R-C type 4 channels array filter 0603 size IEC 61000-4-2 (ESD) Level #4, MSL Level #1 Multilayer laminated structure AVRC series www. DataSheet4U. com.
