AVR-M1005C120M - Varistors

Download the AVR-M1005C120M datasheet PDF. This datasheet also covers the AVRM0603C6R8N variant, as both devices belong to the same varistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • No polarity, due to symmetrical current-voltage characteristics. Equivalent to anode common type Zener diode.
  • Excellent electrostatic absorption capability. Response is as good or better than Zener diode. Keeps symmetrical current-voltage characteristics even after electrostatic absorption.
  • Adopted the inner electrodes lamination structure. Wide range of varistor voltages are available in series (8 to 39V). Low capacitance items are available in series (3.3pF to). W.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AVRM0603C6R8N-TDK.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
AVR-1404 AV Surround Receiver Manual Denon
AVR-1484 AV Surround Receiver Manual Denon
AVR-P40B-8535 PROTOTYPE BOARD ETC
AVR-PG1B 10 pin ICSP AVR Microcontroller Programmer ETC
AVR128DA28 Microcontrollers Microchip

Other Datasheets by TDK Corporation

Part Number Description
AVR-M1005C080M Varistors
AVR-M1005C080M Varistors
AVR-M1005C080M Varistors
AVR-M1005C080M Varistors
AVR-M1005C270M Varistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

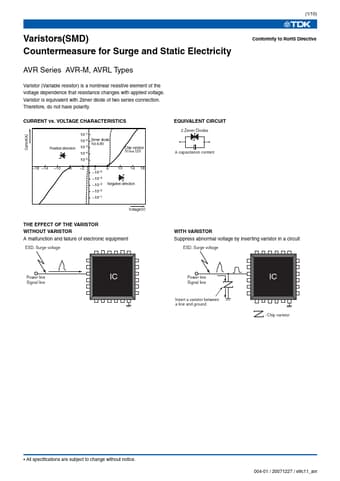

(1/10) Varistors(SMD) Countermeasure for Surge and Static Electricity Conformity to RoHS Directive AVR Series AVR-M, AVRL Types Varistor (Variable resistor) is a nonlinear resistive element of the voltage dependence that resistance changes with applied voltage. Varistor is equivalent with Zener diode of two series connection. Therefore, do not have polarity. CURRENT vs. VOLTAGE CHARACTERISTICS Current(A) Positive direction 10–1 10–2 10–3 Zener diode /Vz:6.
