AOZ2295AQI-03 Synchronous Regulator

AOZ2295AQI-03 Description

ALPHA & OMEGA SEMICONDUCTOR AOZ2295AQI-03 25V Input, 3.3V/12A Output Synchronous EZBuckTM Regulator General .
The AOZ2295AQI-03 is a high-efficiency, easy-to-use DC/ DC buck regulator that targeted for system-power supply solution.

AOZ2295AQI-03 Features

* multiple protection functions such as LDO under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2295AQI-03 is available in a 4mm×4mm QFN - 31L package and is rated over a -40°C to +85°C ambient temperature range.

AOZ2295AQI-03 Applications

* Notebook computers
* Tablet computers Green Product Rev. 1.1 January 2022 www. aosmd. com Page 1 of 15 ALPHA & OMEGA SEMICONDUCTOR Typical Application AOZ2295AQI-03 RTON OFF ON 5V Power Good RPG C5V OFF ON CSS TON IN EN EN2 BS T AOZ2295AQI-03 LX VCC PG OOD USM SS

📥 Download Datasheet

Preview of AOZ2295AQI-03 PDF

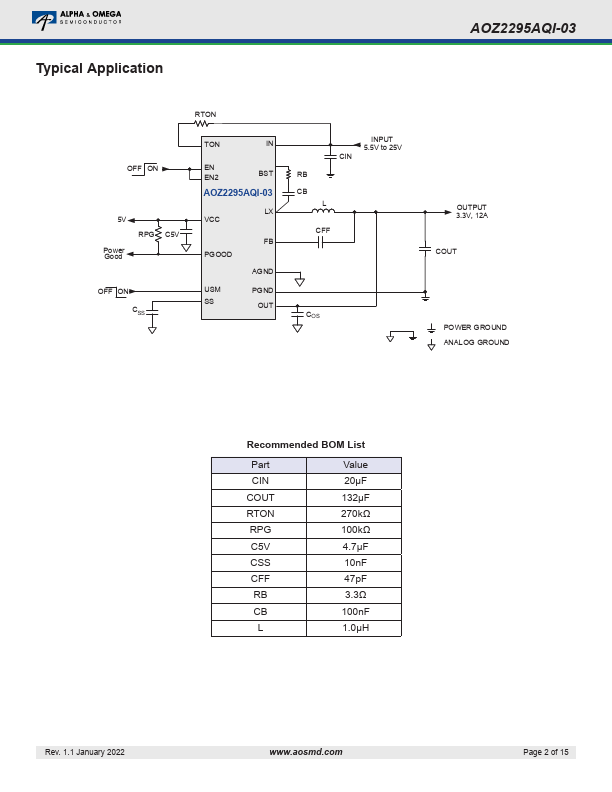

datasheet Preview Page 2 datasheet Preview Page 3
