AOZ2223QI - 36V/8A Synchronous Regulator

General Description

The AOZ2223QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 36V.

The device is capable of supplying 8A of continuous output current with an output voltage adjustable from 0.8V to 16V.

Key Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2223QI is available in a 4mm×4mm QFN-23L package and is rated over a -40°C to +85°C ambient temperature range. Features.
  • Wide input voltage range - 4.8V to 36V Connect BIAS to an external bias (>5V) - 6.5V to 36V (Connect BIAS to VOUT if VOUT>5V).
  • 8A continuous output current.
  • Output volta.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ2231CQI-11 28V/4A Synchronous Regulator
AOZ2231CQI-21 I2C Controllable 28V/4A Synchronous Regulator
AOZ2232CQI-02 28V/6A Synchronous Regulator
AOZ2238QI-01 28V/10A Synchronous Regulator
AOZ22421QI 28V/10A Synchronous Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

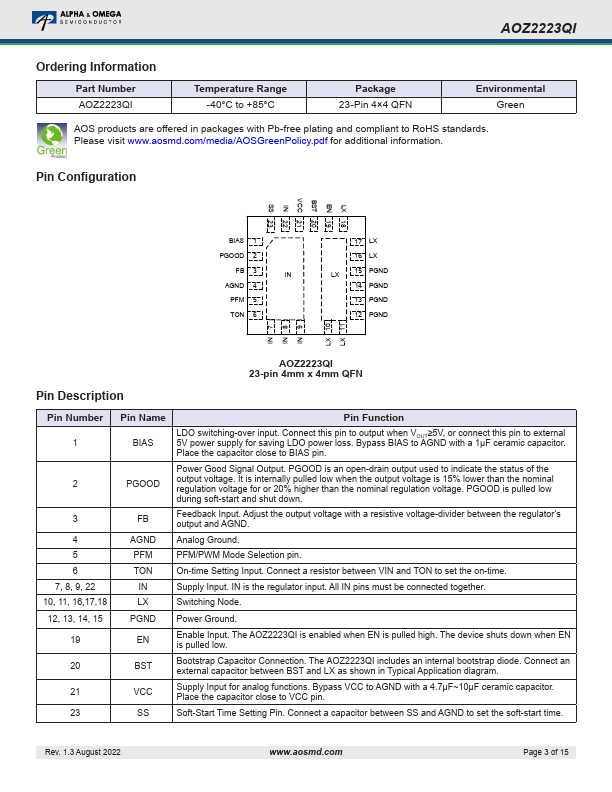

ALPHA & OMEGA SEMICONDUCTOR AOZ2223QI 36V/8A Synchronous EZBuckTM Regulator General Description The AOZ2223QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 36V. The device is capable of supplying 8A of continuous output current with an output voltage adjustable from 0.8V to 16V. The AOZ2223QI integrates an internal linear regulator to generate 5.3V (±5%) VCC from input power or external bias power. If bias voltage is higher than 4.8V, the input voltage of linear regulator switches to the bias for power saving. When the input voltage of linear regulator is lower than 5.3V, the linear regulator operates at low drop-output mode; the VCC voltage is equal to input voltage minus the drop-output voltage of internal linear regulator.
