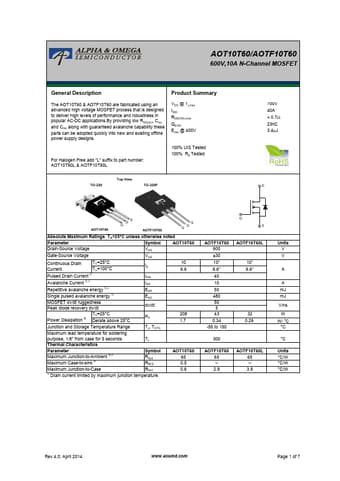

AOT10T60/AOTF10T60
600V,10A N-Channel MOSFET
General Description
Product Summary
The AOT10T60 & AOTF10T60 are fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular AC-DC applications.By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability these parts can be adopted quickly into new and existing offline power supply designs.
VDS @ Tj,max IDM RDS(ON),max Qg,typ Eoss @ 400V
For Halogen Free add "L" suffix to part number: AOT10T60L & AOTF10T60L
100% UIS Tested 100% Rg Tested
TO-220 D
Top View
TO-220F
700V 40A < 0.7Ω 23nC 3.
