AONZ66412 - 40V Dual Asymmetric N-Channel MOSFET

General Description

Bottom source technology Very Low RDS(ON) at Vgs 4.5V Low Gate Charge High Current Capability RoHS 2.0 and Halogen-Free Compliant Applications DC/DC Buck Boost Converters POL Synchronous Dual Top View DFN 5x6F Bottom View Prod

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AON6200L 30V N-Channel MOSFET Freescale
AON6405 P-Channel MOSFET VBsemi
AON6512 N-Channel MOSFET Kexin
AON6910A Dual N-Channel MOSFET VBsemi
AON7202 N-Channel 30V MOSFET VBsemi

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AON1605 20V P-Channel MOSFET
AON1606 20V N-Channel MOSFET
AON1610 20V N-Channel MOSFET
AON1611 P-Channel MOSFET
AON1620 12V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

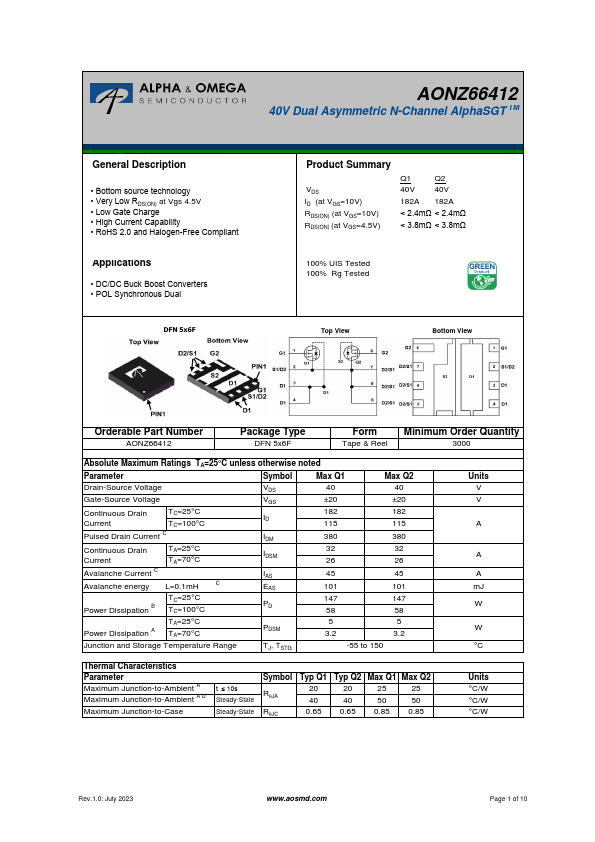

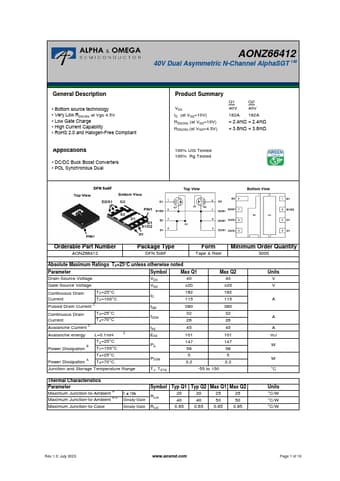

AONZ66412 40V Dual Asymmetric N-Channel AlphaSGT TM General Description • Bottom source technology • Very Low RDS(ON) at Vgs 4.5V • Low Gate Charge • High Current Capability • RoHS 2.0 and Halogen-Free Compliant Applications • DC/DC Buck Boost Converters • POL Synchronous Dual Top View DFN 5x6F Bottom View Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) Q1 Q2 40V 40V 182A 182A < 2.4mΩ < 2.4mΩ < 3.8mΩ < 3.
