AON6716 N-Channel MOSFET

AON6716 Description

AON6716 30V N-Channel MOSFET SRFET General .
SRFETTM AON6716 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate charge.

AON6716 Applications

* TM Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 30V 85A < 2.8mΩ < 4.2mΩ 100% UIS Tested 100% Rg Tested DFN5X6 Top View Bottom View 1 2 3 4 D Top View SRFETTM Soft Recovery MOSFET: Integrated Schottky Diode G S 8 7 6 5 PIN1 Absolute Maximum Ratings TA=25°

📥 Download Datasheet

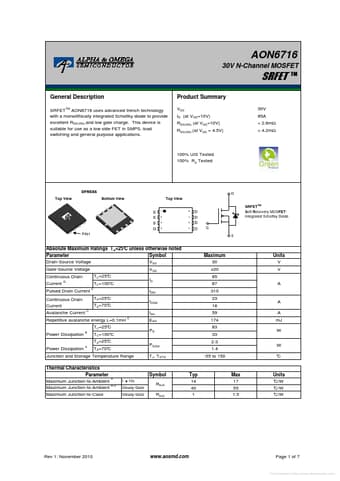

Preview of AON6716 PDF
datasheet Preview Page 2 datasheet Preview Page 3
