AOD4136 - POWER Transistor

Description

The AOD4136 is fabricated with SDMOSTM trench technology that combines excellent RDS(ON) with low gate charge.

The result is outstanding efficiency with controlled switching behavior.

This universal technology is well suited for both DC-DC and load switch applications.

Features

  • VDS (V) = 25V ID = 25A (VGS = 10V) RDS(ON) < 11mΩ (VGS = 10V) RDS(ON).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOD4136 N-Channel MOSFET INCHANGE
AOD4130 N-Channel MOSFET INCHANGE
AOD4132 N-Channel MOSFET INCHANGE
AOD413A N-Channel MOSFET INCHANGE
AOD4102 N-Channel MOSFET INCHANGE

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOD413 P-Channel MOSFET
AOD4130 60V N-Channel MOSFET
AOD4132 30v N-Channel MOSFET
AOD413A 40V P-Channel MOSFET
AOD413Y P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

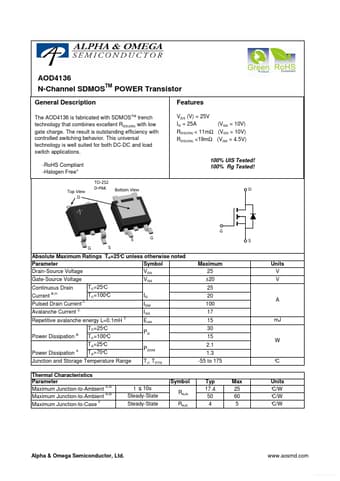

AOD4136 TM N-Channel SDMOS POWER Transistor General Description The AOD4136 is fabricated with SDMOSTM trench technology that combines excellent RDS(ON) with low gate charge. The result is outstanding efficiency with controlled switching behavior. This universal technology is well suited for both DC-DC and load switch applications. -RoHS Compliant -Halogen Free* TO-252 D-PAK Features VDS (V) = 25V ID = 25A (VGS = 10V) RDS(ON) < 11mΩ (VGS = 10V) RDS(ON) <19mΩ (VGS = 4.5V) 100% UIS Tested! 100% Rg Tested! Top View D Bottom View D G S G S G S Absolute Maximum Ratings TA=25° C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage Continuous Drain Current B,H Pulsed Drain Current Avalanche Current C Repetitive avalanche energy L=0.
