AO4449 - 30V P-Channel MOSFET

The AO4449 by Alpha & Omega Semiconductors is a 30V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the AO4449 30V P-Channel MOSFET datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AO4449
Manufacturer Alpha & Omega Semiconductors
File Size 323.71 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet AO4449_AlphaOmegaSemiconductors.pdf

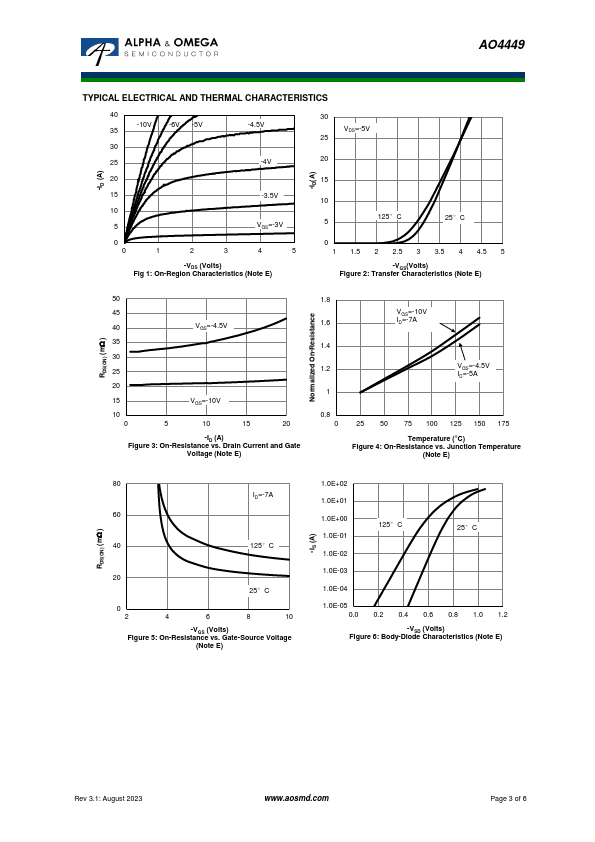

Additional preview pages of the AO4449 datasheet.

AO4449 Product details

Description

Product Summary The AO4449 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge.This device is suitable for use as a load switch or in PWM applications.VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS = -4.5V) 100% UIS Tested 100% Rg Tested -30V -7A < 34mW < 54mW SOIC-8 D Top View Bottom View D D D D G S S S G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Maximum Drain-Source Voltage VDS -30 Gate-S
