AO3481 - 30V P-Channel MOSFET

Product Overview

📥 Download Datasheet

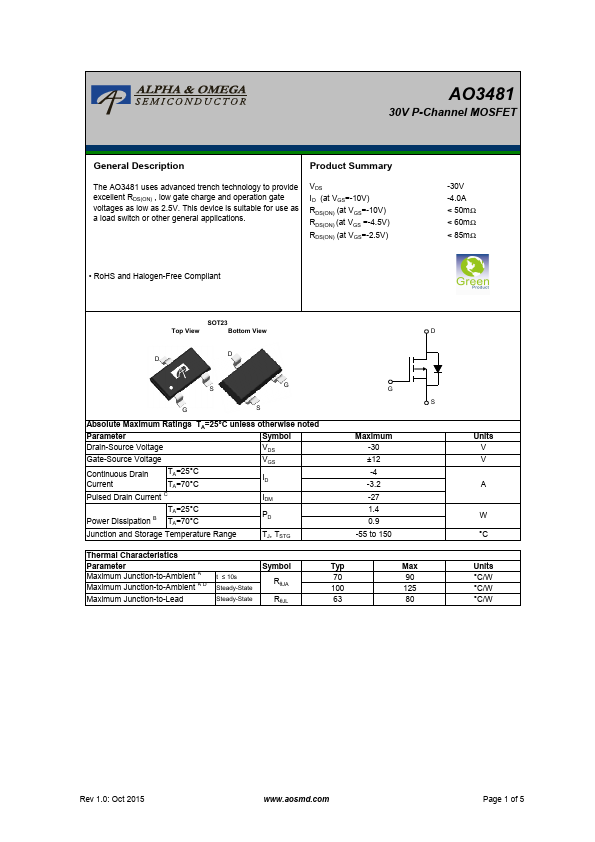

Datasheet preview – AO3481

Datasheet Details

Part number AO3481
Manufacturer Alpha & Omega Semiconductors
File Size 816.07 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet AO3481 Datasheet

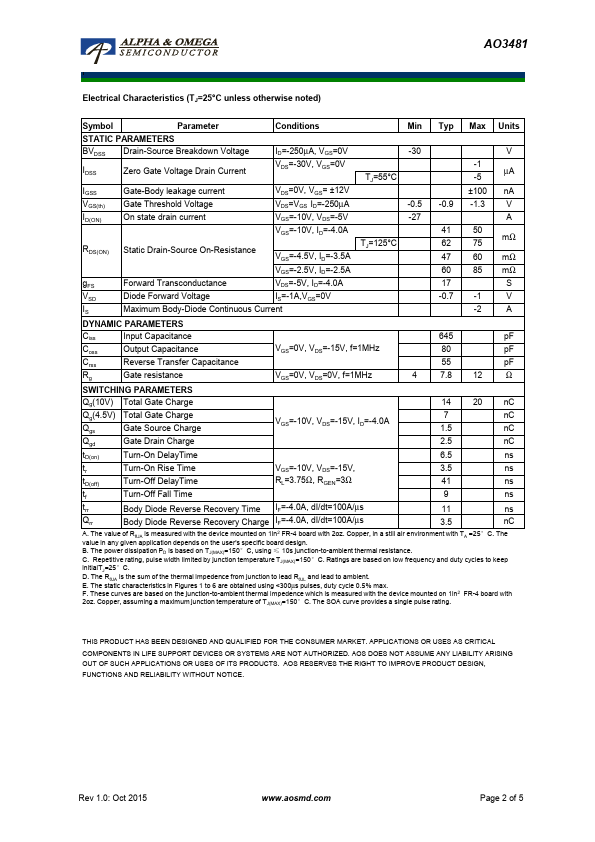

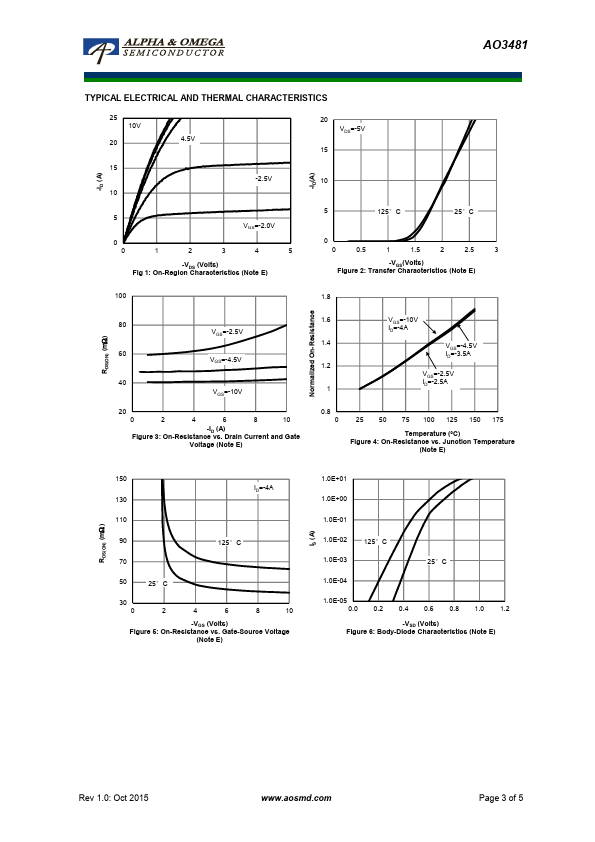

Additional preview pages of the AO3481 datasheet.

Product details

Description

Product Summary The AO3481 uses advanced trench technology to provide excellent RDS(ON) , low gate charge and operation gate voltages as low as 2.5V.This device is suitable for use as a load switch or other general applications.VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS =-4.5V) RDS(ON) (at VGS=-2.5V) RoHS and Halogen-Free Compliant -30V -4.0A < 50mΩ < 60mΩ < 85mΩ SOT23 Top View Bottom View D D D S G G S G S Absolute Maximum Ratings TA=25°C unless otherwi
