AO3452 - 30V N-Channel MOSFET

Product Overview

📥 Download Datasheet

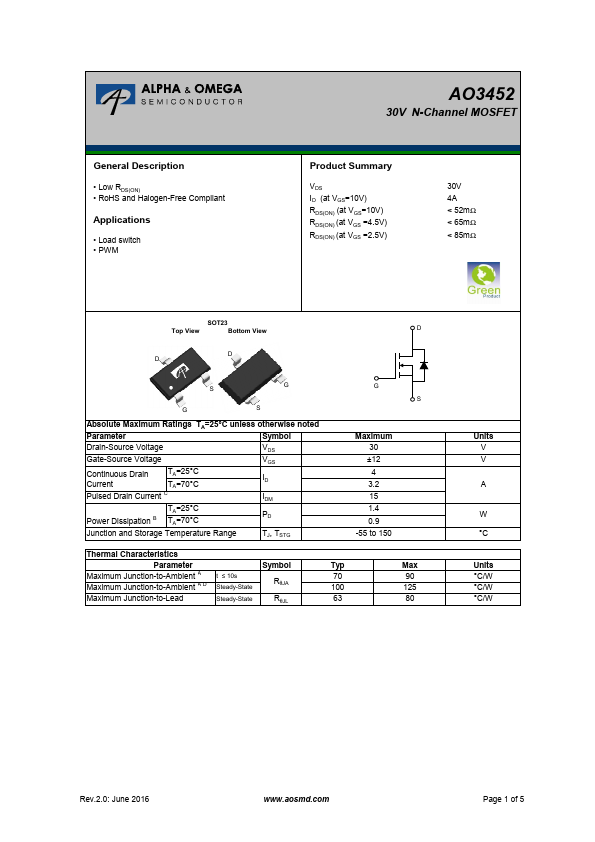

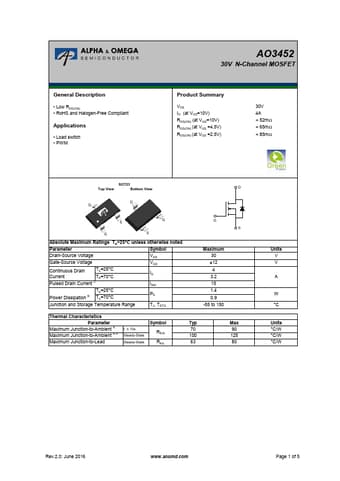

Datasheet preview – AO3452

Datasheet Details

Part number AO3452
Manufacturer Alpha & Omega Semiconductors
File Size 373.61 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AO3452 Datasheet

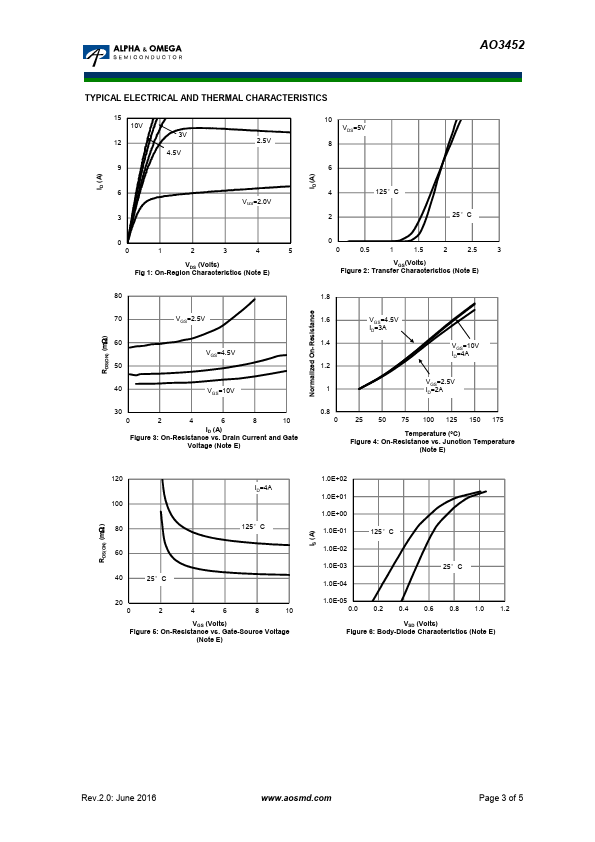

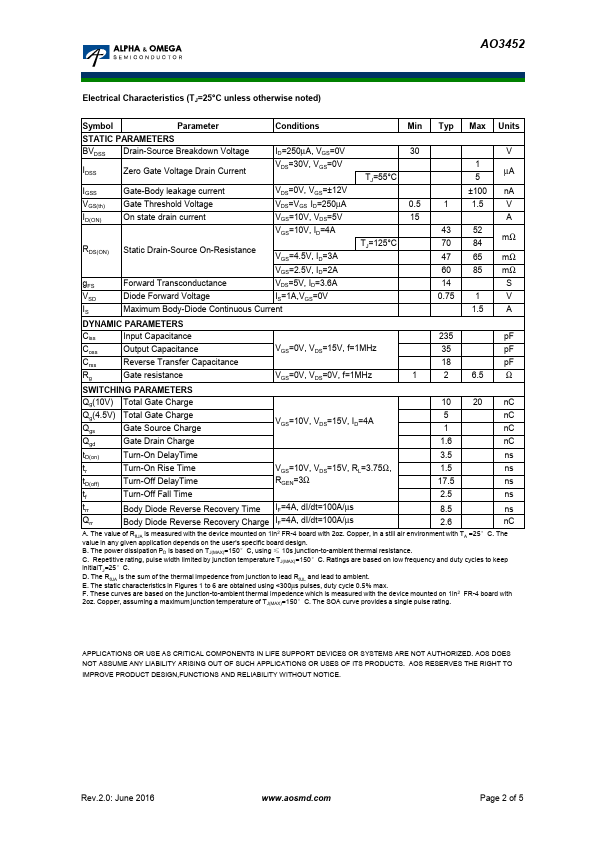

Additional preview pages of the AO3452 datasheet.

Product details

Description

Low RDS(ON) RoHS and Halogen-Free Compliant Applications Load switch PWM AO3452 30V N-Channel MOSFET Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) RDS(ON) (at VGS =2.5V) 30V 4A < 52mΩ < 65mΩ < 85mΩ SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID
