AS4C128M16D3LB-12BIN - 2G DDR3L

Key Features

  • JEDEC Standard Compliant.
  • Power supplies: VDD & VDDQ = +1.35V (1.283V ~ 1.45V).
  • Backward compatible to VDD & VDDQ = +1.5V ±0.075V.
  • Operating temperature: TC = -40~95°C (Industrial).
  • Supports JEDEC clock jitter specification.
  • Fully synchronous operation.
  • Fast clock rate: 800MHz.
  • Differential Clock, CK & CK#.
  • Bidirectional differential data strobe - DQS & DQS#.
  • 8 internal banks for concurrent operation.
  • 8n-bit prefetch architecture.
  • Pipel.

📥 Download Datasheet

Datasheet Details

Part number AS4C128M16D3LB-12BIN
Manufacturer Alliance Semiconductor
File Size 1.96 MB
Description 2G DDR3L
Datasheet download datasheet AS4C128M16D3LB-12BIN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AS4C1259 256K x 1 DRAM Austin Semiconductor
AS4C1259883C 256K x 1 DRAM Austin Semiconductor
AS4C1024 1M x 1 DRAM Austin Semiconductor
AS4C1M16S 1M x 16 bit Synchronous DRAM Alliance Memory
AS4C1M16S-C 1M x 16 bit Synchronous DRAM Alliance Memory

Other Datasheets by Alliance Semiconductor

Part Number Description
AS4C128M16D3LB-12BCN Double-data-rate architecture
AS4C128M16D3LA-12BIN 128M x 16 bit DDR3L Synchronous DRAM
AS4C128M16D3LC-12BCN 128M x 16 bit DDR3L Synchronous DRAM
AS4C128M16D3LC-12BIN 128M x 16 bit DDR3L Synchronous DRAM
AS4C128M16D3A-12BIN 2Gb Double-Data-Rate-3 DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

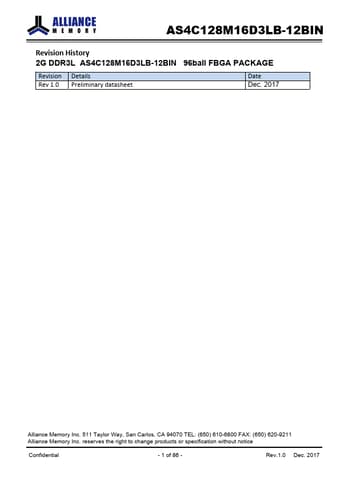

AS4C128M16D3LB-12BIN Revision History 2G DDR3L AS4C128M16D3LB-12BIN 96ball FBGA PACKAGE Revision Details Rev 1.0 Preliminary datasheet Date Dec. 2017 Alliance Memory Inc. 511 Taylor Way, San Carlos, CA 94070 TEL: (650) 610-6800 FAX: (650) 620-9211 Alliance Memory Inc. reserves the right to change products or specification without notice Confidential - 1 of 86 - Rev.1.0 Dec. 2017 AS4C128M16D3LB-12BIN 128M x 16 bit DDR3L Synchronous DRAM (SDRAM) Advance (Rev. 1.0, Dec. /2017) Features  JEDEC Standard Compliant  Power supplies: VDD & VDDQ = +1.35V (1.283V ~ 1.45V)  Backward compatible to VDD & VDDQ = +1.5V ±0.
