CT8150 - Integrated Omnipolar TMR Analog Sensor

Name: CT8150
SKU: CT8150-1559502

Allegro

📥 Download Datasheet

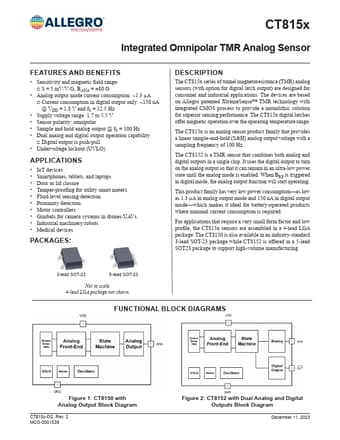

CT8150 Datasheet Preview — Preview of CT8150 PDF

Datasheet Details

Part number	CT8150
Manufacturer	Allegro
File Size	1.73 MB
Description	Integrated Omnipolar TMR Analog Sensor
Datasheet	CT8150-Allegro.pdf

CT8150 Product details

Description

The CT815x series of tunnel magnetoresistance (TMR) analog sensors (with option for digital latch output) are designed for consumer and industrial applications.

Features

Sensitivity and magnetic field range:.
S = 5 mV/V/G, BANA = ±80 G.
Analog output mode current consumption: ~1.3 µA.
Current consumption in digital output only: ~150 nA @ VDD = 1.8 V and fS = 12.5 Hz.
Supply voltage range: 1.7 to 5.5 V.
Sensor polarity: omnipolar.
Sample and hold analog output @ fS = 100 Hz.
Dual analog and digital output operation capability.
Digital output is push-pull.
Undervoltage locko.
