APS12060, APS12000 Vertical and Planar Hall-Effect Latches

APS12060 Description

APS12000 and APS12060 2 - Vertical and Planar Hall-Effect Latches .
The APS12000 and APS12060 families of Hall-effect latches are AEC-Q100 qualified for 24 V automotive applications and compliant with ISO 26262:2011 AS.

APS12060 Features

* ASIL A functional safety compliance
* Planar and vertical Hall-effect sensor ICs
* 3.3 to 24 V operation
* Automotive-grade ruggedness and fault tolerance
* Extended AEC-Q100 qualification
* Internal protection circuits enable 40 V load dump complian

APS12060 Applications

* and compliant with ISO 26262:2011 ASIL A. These sensors are temperature-stable and suited for operation over extended junction temperature ranges up to 175°C. The APS12000 and APS12060 families are available in several different magnetic sensitivities to offer flexible options for system design. The

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APS12060, APS12000. Please refer to the document for exact specifications by model.

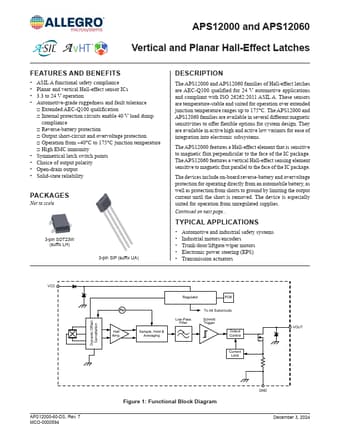

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APS12060, APS12000
Manufacturer
Allegro
File Size
1.45 MB
Datasheet
APS12000-Allegro.pdf
Description
Vertical and Planar Hall-Effect Latches
Note
This datasheet PDF includes multiple part numbers: APS12060, APS12000.
Please refer to the document for exact specifications by model.
